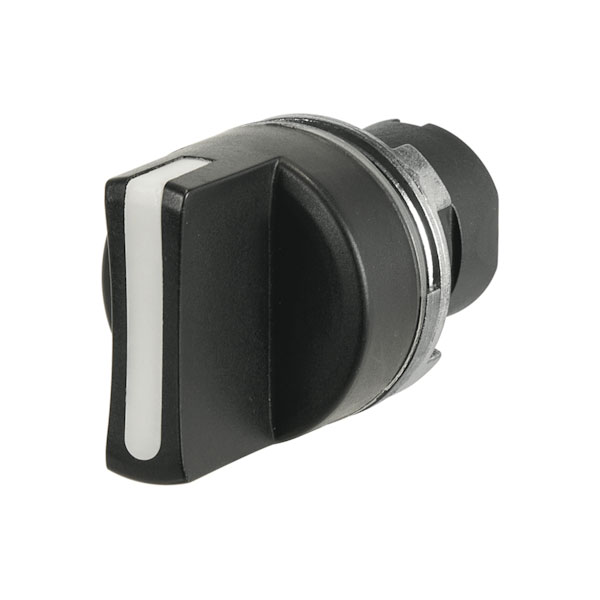

EAO 46-2818.1CV0.007, is a knob selector switch that comes in white and features a four-position configuration utilising Cam Q technology. This switch is designed for precision and reliability in control panel assemblies, where it provides clear visual indication and tactile feedback for operators. The durable construction ensures long-term performance in demanding environments, such as industrial machinery and automation systems. Engineers can employ this switch in applications requiring secure position holding and user-friendly interfaces.
| Type |
Selector Switch |
| Approbations |
Csa, Eac, Ul |
| Climate Resistance |
+25°c-97%rh / +45°c-93%rh (iec-en60068-2-30) |
| Conformities |
Ce |
| Design |
Raised |
| Erp Ehq Custom Number |
8538.9000 |
| Erp Ehq Source Country |
It |
| Front Bezel Colour |
Black |
| Front Bezel Material |
Plastic |
| Front Dimension Concat |
Ø 29mm |
| Front Form |
Round |
| Ik Front Protection |
Ik06 |
| Ip Front Protection |
Ip65 |
| Lever Bar Colour |
White |
| Lever Colour |
Black |
| Lever Shape |
Short |
| Max No Modules |
8 |
| Mechanical Lifetime |
1 Mil. Cycles Of Operation (rcc/rpb) |
| Mounting Cut Out Dps Concat |
Ø 22mm |
| Operating Temperature |
– 25 °c … + 55°C |
| Output Hsd |
Yes |
| Protection Class |
Ll |
| Rotary Positions |
4 Positions |
| Shock Resistance |
30g, 18ms (en-iec 60068-2-27) | 50g, 11ms (en-iec 60068-2-27) |
| Standards Norms |
Csa C22-2, Iec En 60947-1, Iec En 60947-5-1, Ul508 |
| Switching Action Concat |
Maintained - Maintained - Maintained - Maintained |
| Switching Angle Rotation Concat |
52° |
| Vibration Resistance |
5g F= 2...500hz (en-iec 60068-2-6) |
| Weight |
0.0274 |
