EAO 45-2C36.1A20.000 Series 45 Emergency-Stop Switch Actuator Twist Rel Red D60

MPN: 45-2C36.1A20.000
Brand: EAO
Order Code: 53-0820
Country of Origin: Germany

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£33.25
10+	£27.35
25+	£25.30

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched same day - 15 in stockAdditional quantity lead time 9 days

Product Details
Product Range
Data Sheets
Quick Quote

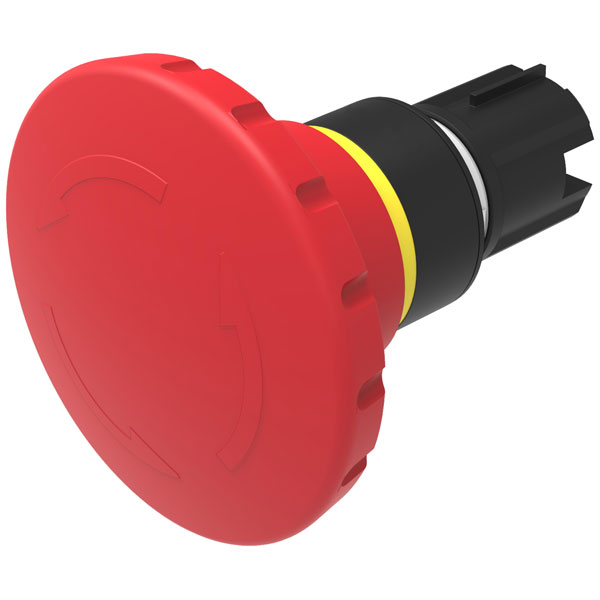

The EAO Series 45 features a non-illuminated red emergency stop mushroom head actuator in a black and yellow plastic housing, with twist to release functionality.

Innovative, comprehensive and Modular. Aesthetic and robust in use. EAO's Series 45 unites an extremely broad range of machine operating functions with outstanding technical properties.

Switching Action: Latching
Function: Emergency Stop Switch
Standard: IEC 60947-5-5
Housing Material: Plastic
Housing Colour: Black and Yellow
Button Material: Plastic
Button Colour: Red
Button Size: Ø 60 mm
Mounting cut-out: Ø 22.5 mm
Front IP protection: IP66, IP67, IP69K
Weight 0.056 kg

Switch Function	Maintained
Type	Twist Release
Button Colour	Red
Climate Resistance	During Operation According To Iec 60721: 3k6, 3c3, 3s2, 3m6
Dimensions Concat	Ø 60mm
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	De
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 60mm
Front Form	Round
Lens Colour	Red
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Mushroom-head
Mechanical Lifetime	300 000 Cycles Of Operation
Operating Temperature	– 25 °c … + 70°C
Output Hsd	Yes
Release Type	Twist To Unlock
Shock Resistance	According To Iec 60068-2-27: Sinusoidal Half-wave 50 G / 11 Ms
Switching Action Concat	Maintained
Vibration Resistance	According To Iec 60068-2-6: 2 … 500 Hz: 5 G
Weight	0.066
