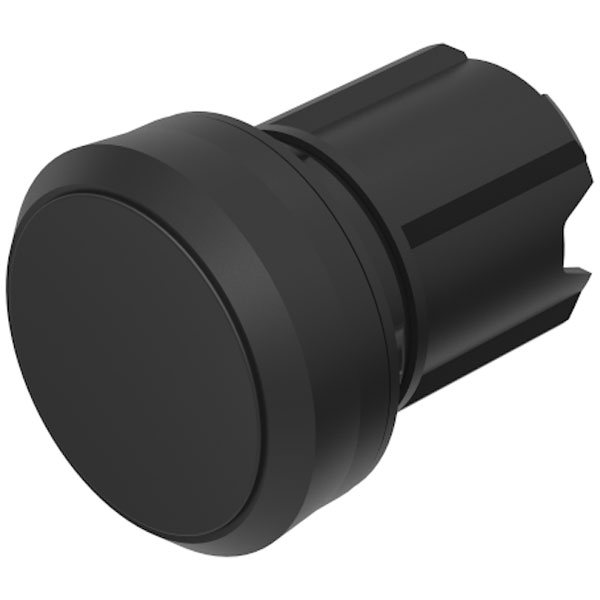

EAO 45-2131.1110.000 Pushbutton actuator black lens-level with housing

EAO 45-2131.1110.000 is a pushbutton actuator featuring a black lens that is designed to be level with the housing. This actuator exhibits a streamlined and ergonomic design, making it suitable for applications where space and aesthetics are important. Designed for reliability and durability, this device is used to send electrical signals through a simple push mechanism, facilitating user interaction with complex systems. Typically employed in control panels and machinery interfaces.

Type	Pushbutton actuator
Switch Function	N/A
Mounting	Panel
Voltage Rating	N/A
Illumination	Non-Illuminated
Panel Cutout Dimensions	30
Climate Resistance	During Operation According To Iec 60721: 3k6, 3c3, 3s2, 3m6
Design	Raised
Erp Ehq Custom Number	8538.9000
Erp Ehq Source Country	Cn
Front Bezel Colour	Black
Front Bezel Material	Plastic
Front Dimension Concat	Ø 29,5mm
Front Form	Round
Ip Front Protection	Ip66, Ip67, Ip69k
Lens Colour	Black
Lens Illumination	Non Illuminated
Lens Material	Plastic
Lens Shape	Flush
Mechanical Lifetime	500 000 Cycles Of Operation
Mounting Cut Out Dps Concat	Ø 22mm
Operating Temperature	– 25 °c … + 70°C
Output Hsd	Yes
Shock Resistance	According To Iec 60068-2-27: Sinusoidal Half-wave 50 G / 11 Ms
Switching Action Concat	Momentary
Switching System	Slow-make Switching Element
Vibration Resistance	According To Iec 60068-2-6: 20 … 500 Hz: 5 G
Weight	0.019
