Drive System Europe MSW10070184 DSAK4 Linear Actuator 500mm 100N 12V

Drive System Europe by MSW
Order Code:

11-6974

Brand: Drive System Europe by MSW MPN: 10070184 EAN-13: 4076138681141
Qty Unit Price (Ex VAT)
1+ £179.46
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 available to back orderBack-order availability date - 19/12/2025

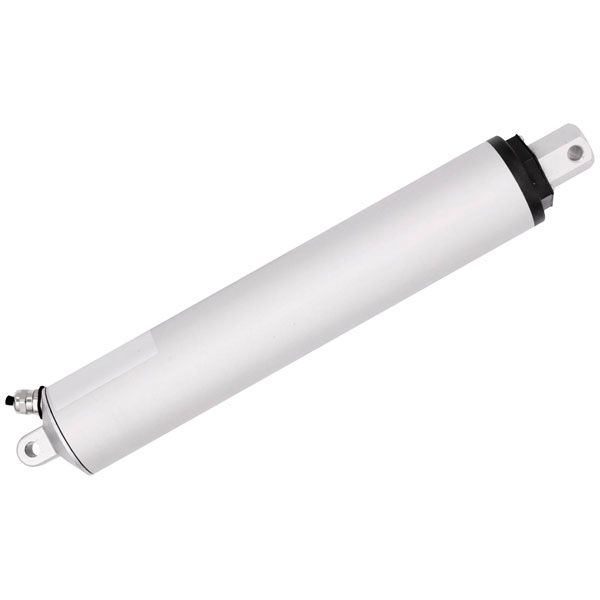

Manufactured by Drive System Europe, the DSAK4-12-100-500-IP54 linear actuator offers a stroke length of 500 mm and a thrust of 100 N, powered by 12 V DC. Ideal for precise motion control in automation and robotics applications, it features a durable design with an IP54 protection rating. Suitable for use in environments where dust and water spray resistance is necessary.
Type Linear actuator
IP Rating IP54
Max. ambient temperature +65°C
Max. temperature +65°C
Min. ambient temperature -26°C
Min. temperature -26°C
Misc Attribute DSAK4-12-100-500-IP54
Nominal Current 9.4A
Nominal current - rounded value 9.4A
Nominal Voltage 12V DC
Speed (max.) 140 mm/s
Stroke Length 500mm
Thrust 100N
