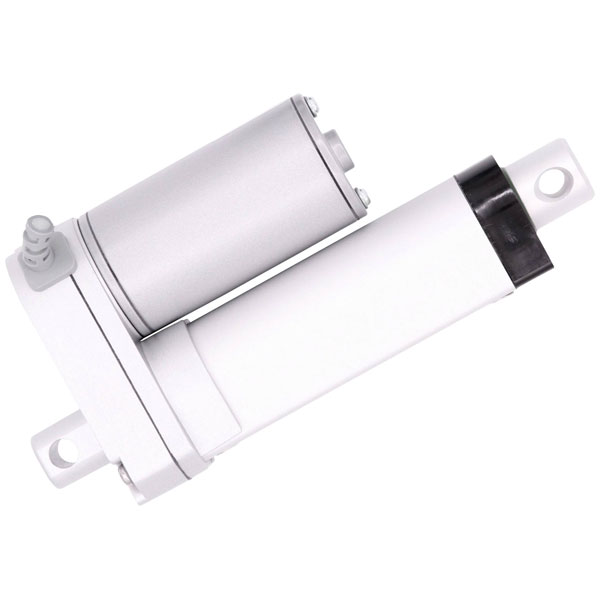

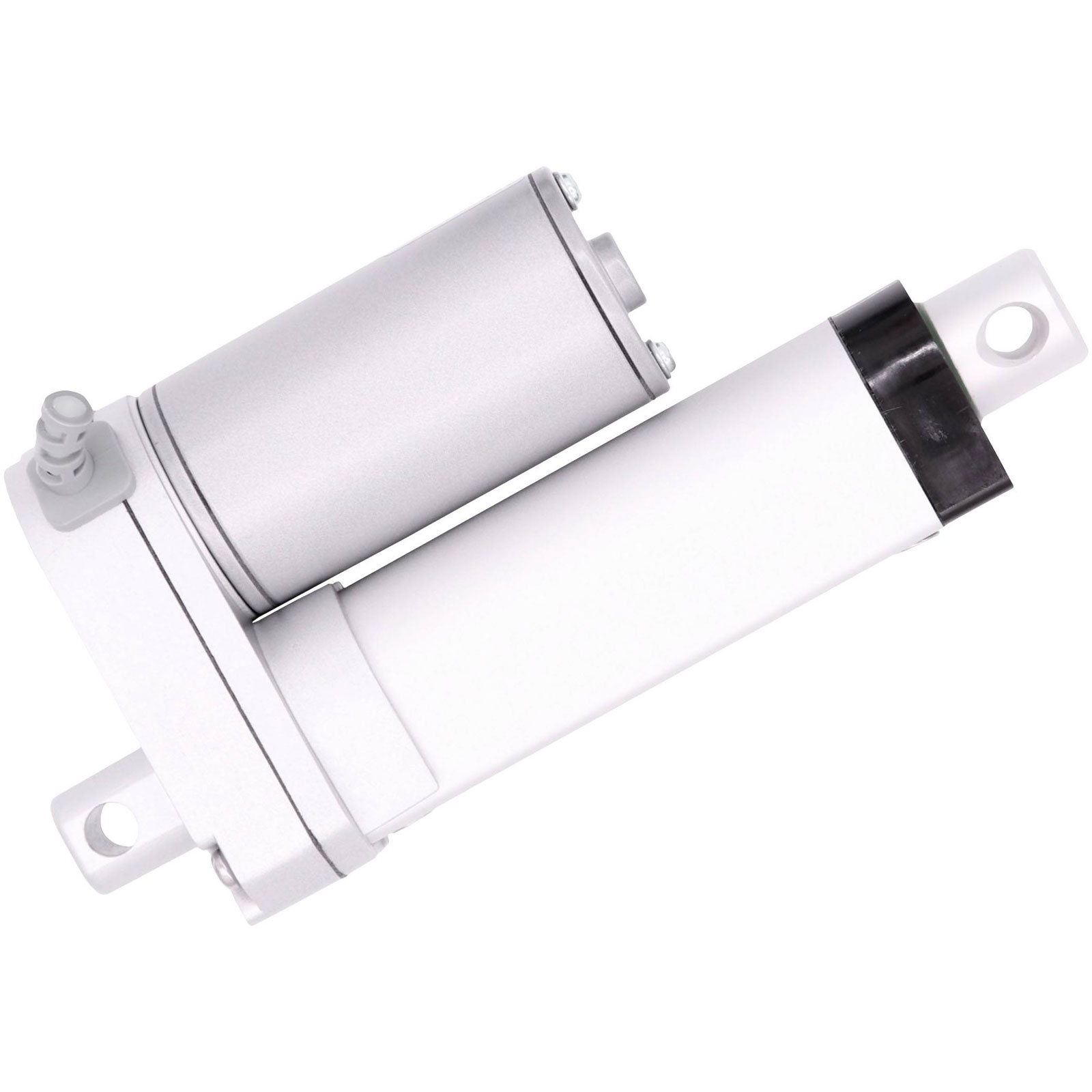

Drive System Europe DSZY1-24-10-100-STD-IP65 Linear Actuator 100mm 250N

MPN: 003202
Brand: Drive System Europe by MSW
EAN-13: 4016138654691
Order Code: 11-6910
Country of Origin: Taiwan

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£158.90

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Available to back orderBack order, lead time 5 weeks

Product Details
Product Range

The Drive System Europe linear actuator DSZY1-24-10-100-STD-IP65 features a 100 mm stroke length and a thrust of 250 N, designed for 24 V DC operation. Its robust zinc alloy housing ensures durability, with an IP65 rating for protection against dust and water. Ideal for automation and drive technology applications, it provides reliable movement and positioning in various industrial settings.

Type	Linear actuator
Stroke Length	100mm
Thrust	250N
Nominal Current	1.6A
Nominal Voltage	24V DC
Current Consumption	3.6A
Misc Attribute	DSZY1-24-10-100-STD-IP65
Nominal current - rounded value	1.6A
Nominal current (details)	1.6A
Nominal voltage (details)	24V DC
Speed (max.)	29 mm/s
