Drive System Europe DSAK4-12-200-500-IP54 Linear Actuator 500mm 200N 12V

Drive System Europe by MSW
Standard range
Order Code:

11-6979

Brand: Drive System Europe by MSW MPN: 10070189 EAN-13: 4016138683165
Qty Unit Price (Ex VAT)
1+ £174.23
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

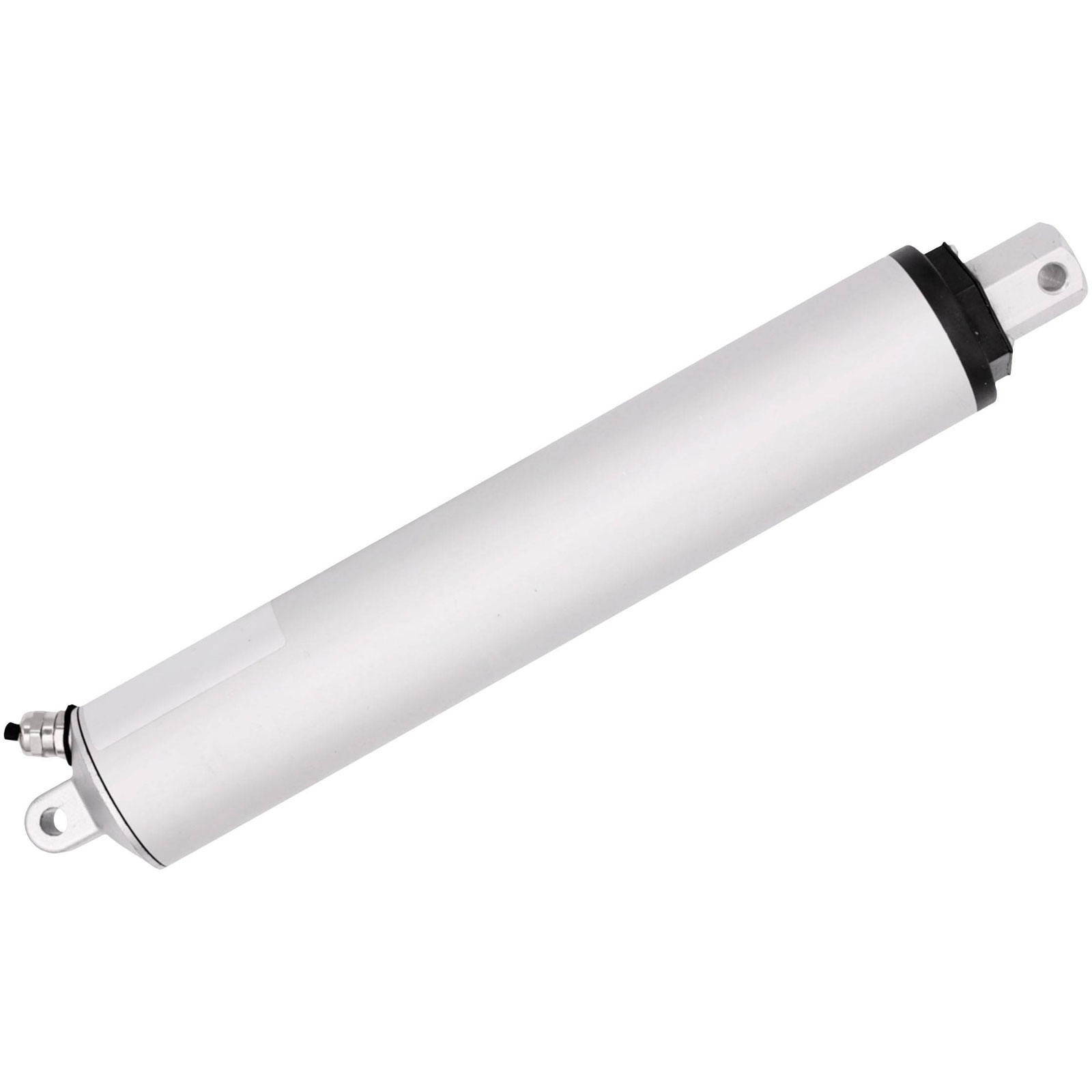

The MSW linear actuator DSAK4-12-200-500-IP54 by Drive System Europe features a stroke length of 500 mm and a thrust of 200 N, operating at 12 V DC. It is designed for applications requiring precise linear motion, such as in automation systems, adjustable furniture, or industrial machinery. Its IP54 rating makes it suitable for environments where dust and moisture are present.
Type Linear actuator
IP rating IP54
Manufacturer part # 10070189
Max. ambient temperature +65°C
Max. temperature +65°C
Min. ambient temperature -26°C
Min. temperature -26°C
Misc Attribute DSAK4-12-200-500-IP54
Nominal current 9.4A
Nominal current - rounded value 9.4A
Nominal voltage 12V DC
Speed (max.) 45 mm/s
Stroke length 500mm
Thrust 200N
