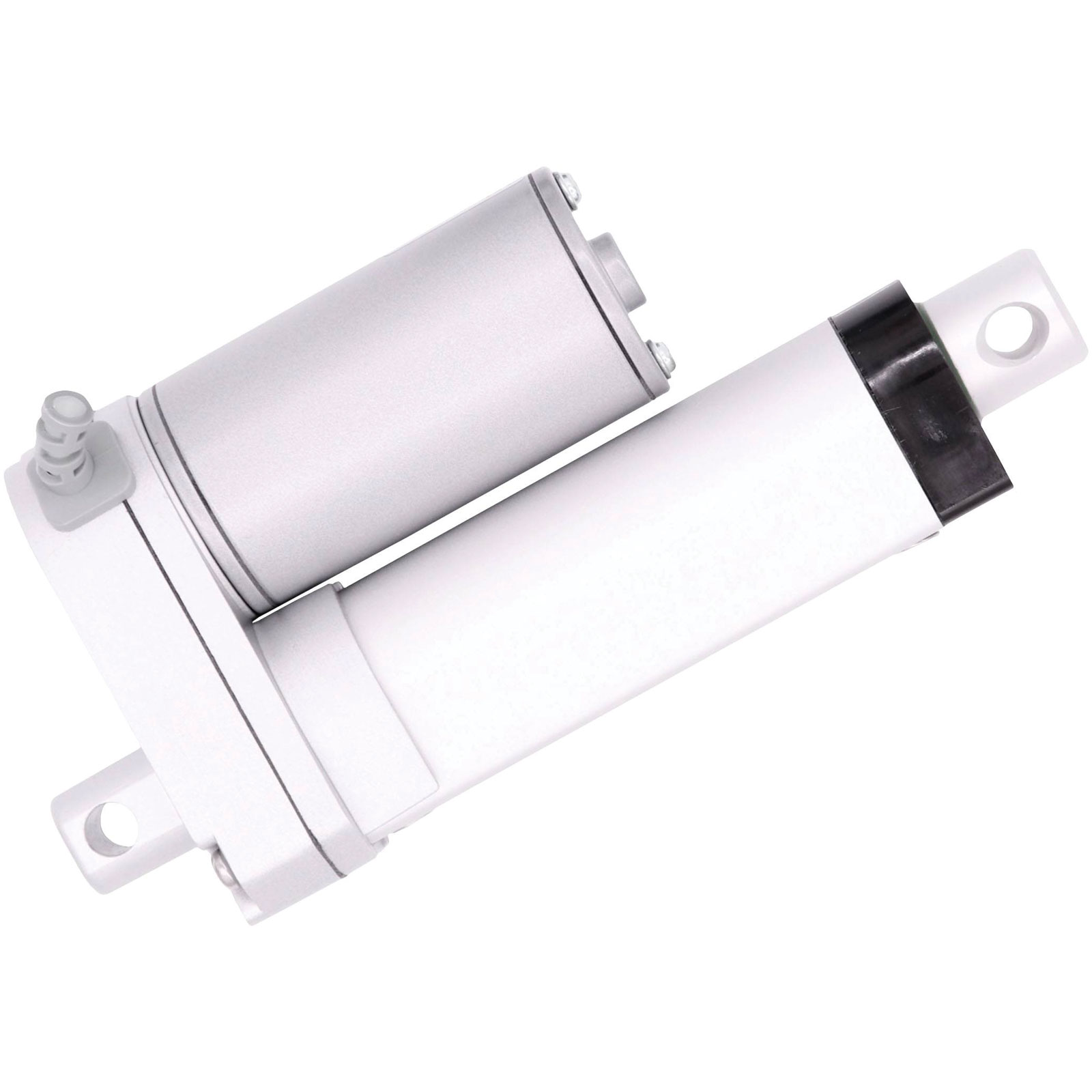

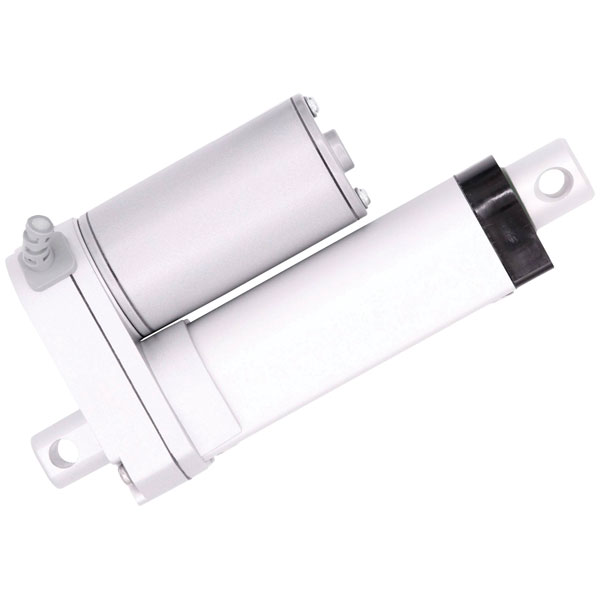

Drive System Europe 10070426 Linear Actuator Thrust 500N Stroke 100mm

Image Representative of Range

Drive System Europe 10070426 Linear Actuator Thrust 500N Stroke 100mm

Drive System Europe by MSW
Standard range
Order Code:

08-9420

Brand: Drive System Europe by MSW MPN: 10070426 EAN-13: 4016139146324
Qty Unit Price (Ex VAT)
1+ £163.03
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
7 in stock, despatched in 4 working days

Manufactured by Drive System Europe by MSW, the DSZY30-12-AC-100-IP54 is a linear actuator with a stroke length of 100 mm and a thrust capacity of 500 N. It operates on 12 V DC and offers protection with an IP54 rating, making it suitable for moderately challenging environments. This actuator is typically used in applications requiring precise linear motion, such as in industrial automation or adjustable furniture.
Type Linear actuator
Holding force 4000N
IP rating IP54
Manufacturer part # 10070426
Max. ambient temperature 65°C
Max. speed 18 mm/s
Min. ambient temperature 26°C
Misc Attribute DSZY30-12-AC-100-IP54
Nominal current 4.9A
Nominal current - rounded value 4.9A
Nominal voltage 12V DC
Stroke length 100mm
Thrust 500N
