Drive System Europe 00070047 DSZY4 Electric Cylinder, 200mm, 1500N, 12V DC

Drive System Europe by MSW
Order Code:

11-6869

Brand: Drive System Europe by MSW MPN: 00070047 EAN-13: 4016139002965

Discontinued

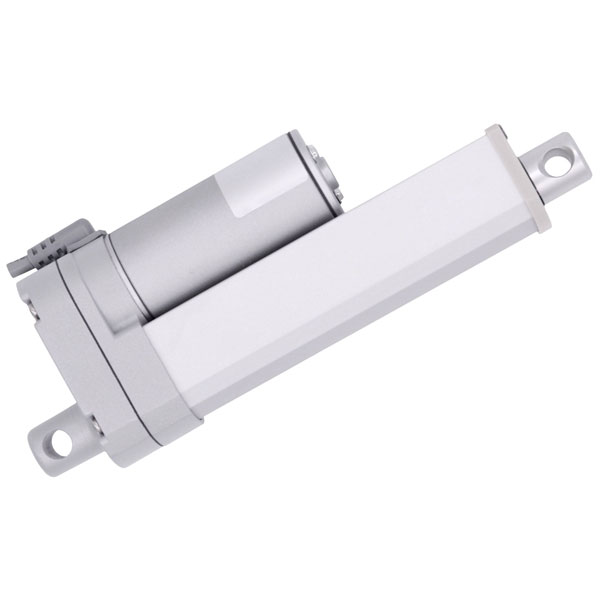

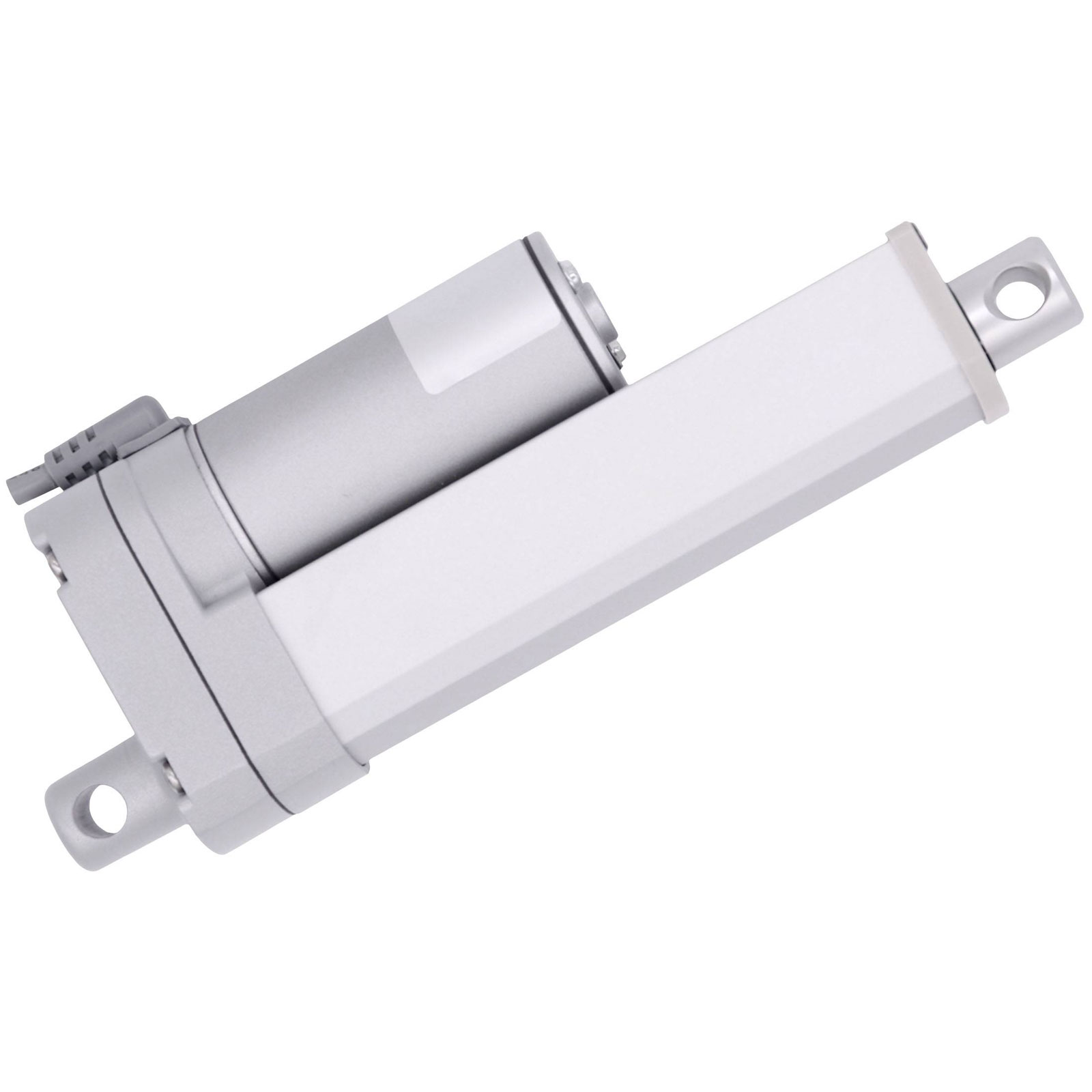

Drive System Europe by MSW manufactures the DSZY4-12-30-200-STD-IP65 linear actuator, which features a stroke length of 200 mm, a thrust of 1500 N, and operates on 12 V DC. This robust component is suitable for applications requiring precise linear motion, such as in automation or industrial equipment. With an IP65 rating, it is ideal for environments where protection against dust and water ingress is necessary.
Type Linear actuator
IP Rating IP65
Max. ambient temperature +65°C
Max. temperature +65°C
Min. ambient temperature -20°C
Min. temperature -20°C
Misc Attribute DSZY4-12-30-200-STD-IP65
Nominal Current 4.6A
Nominal current - rounded value 4.6A
Nominal Voltage 12V DC
Speed (max.) 10 mm/s
Stroke Length 200mm
Thrust 1500N
