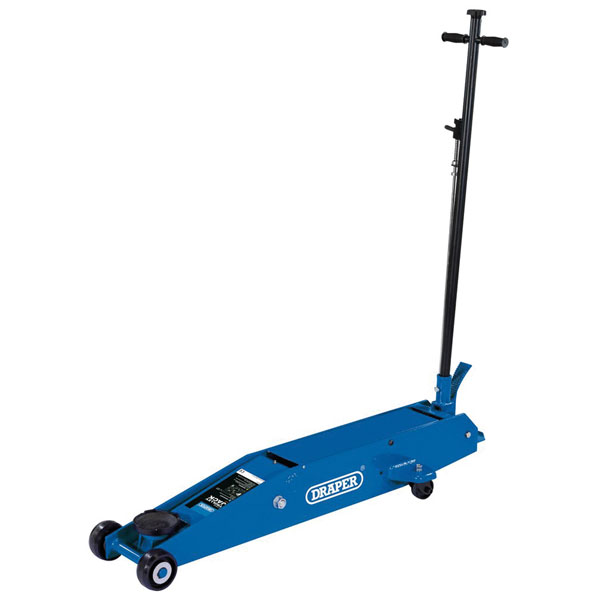

Draper 03467 Long Chassis Trolley Jack (5 tonne)

Heavy-duty chassis fitted with a 'quick-lift' foot pedal to rapidly raise the saddle to the vehicle jacking point. Large saddle aids positioning. Locking facility allows the handle to be locked in three positions. T-shaped handle with an incorporated release valve prevents accidental lowering. Rear swivelling castors with toe plate increases manoeuvrability. Safety valve prevents the jack from overloading. Supplied with a one piece handle.

• Capacity 5 Tonne (5,000kg)
• Minimum Height 160mm
• Maximum Height 560mm
• Saddle Diameter 130mm
• Handle Length 1,220mm
• Chassis Length 1,410mm
• Nett Weight 85kg

Type	Trolley Jack
Load Capacity	5tonne
Capacity	5tonne
