DRAKA 1018270 Audio Cable Li-02YSDY 1x2x0.22mm² Black Sold Per Metre

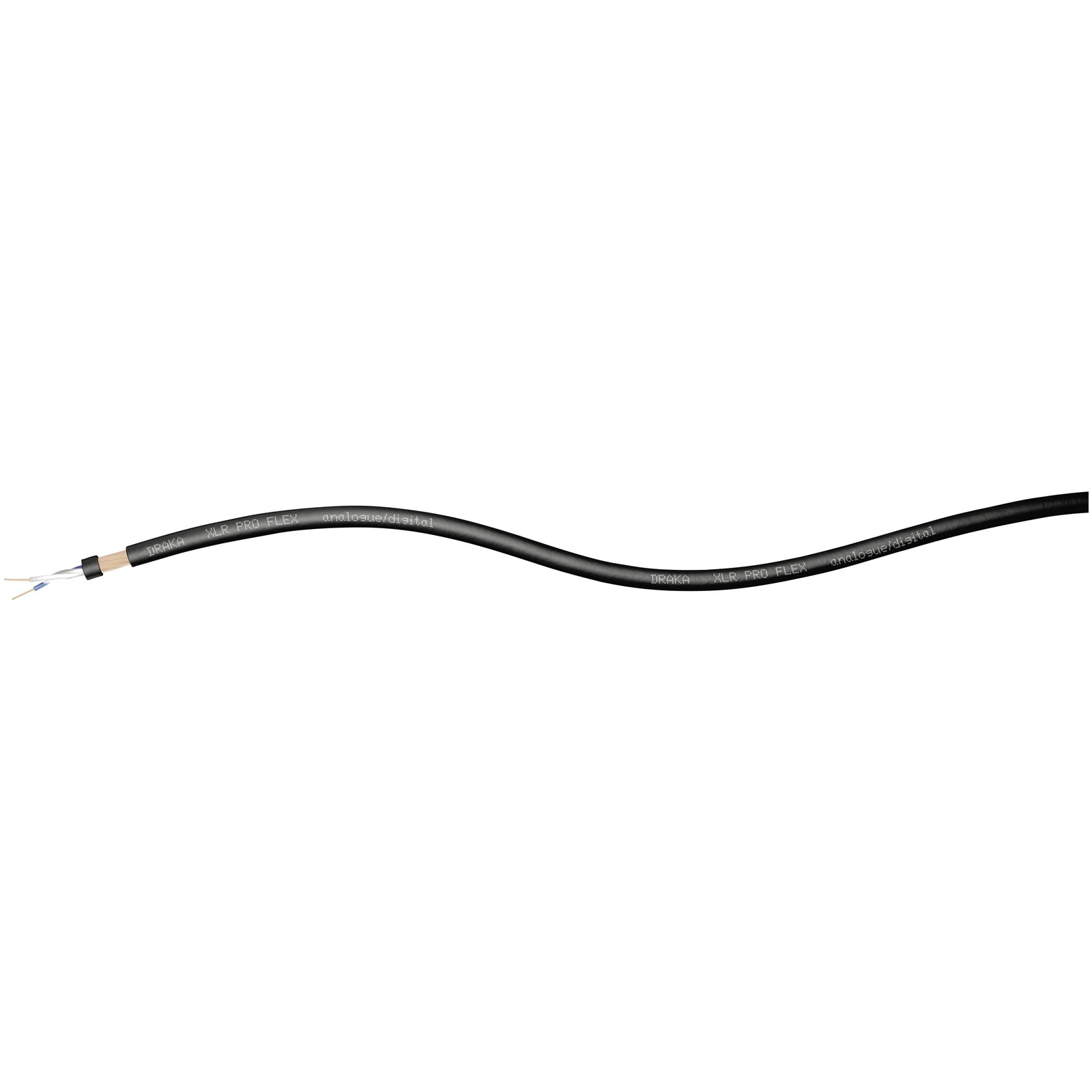

Image Representative of Range

DRAKA 1018270 Audio Cable Li-02YSDY 1x2x0.22mm² Black Sold Per Metre

DRAKA
Standard range
Order Code:

11-6841

Brand: DRAKA MPN: 1018270 EAN-13: 2050001695840
Qty Unit Price (Ex VAT)
1+ £1.19
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
24 in stock, despatched in 4 working days

The DRAKA 1018270 audio cable is a high-quality, black, Li-02YSDY type cable with a specification of 1 x 2 x 0.22 mm², sold per metre. It is designed for transmitting audio signals, making it ideal for applications such as loudspeaker, hi-fi, AV, and general audio connections. DRAKA's audio cables are known for their reliability and excellent performance in professional and home audio setups.
Type Audio cable
Attenuation At 0.015 MHz: 0.3 dB / 100 m · At 1 MHz: 1.5 dB / 100 m · At 4 MHz: 3.8 dB / 100 m · At 10 MHz: 6 dB / 100 m · At 20 MHz: 8.5 dB / 100 m ·dB
Bend radius (no. of ODs for fixed installation) 8
Bend radius (no. of ODs for flexible installation) 4
Cable type Li-02YSDY
Cross section 1 x 2 x 0.22 mm²
Cross section (each core) 0.22mm²
Factory colour Black
Halogen-free No
Insulation material PVC
Max. length sold by the metre 100m
Max. temperature range (fixed installation) +50°C
Max. temperature range (flexible installation) +50°C
Min. temperature range (fixed installation) -5°C
Min. temperature range (flexible installation) -5°C
Misc Attribute Li-02YSDY
No. of leads 2
Outside Ø 6.50mm
Packaged No
Shielded Yes
Sold per metre Yes
Test voltage 1000V
Twisted pair cabling (part 1) Yes (1)
