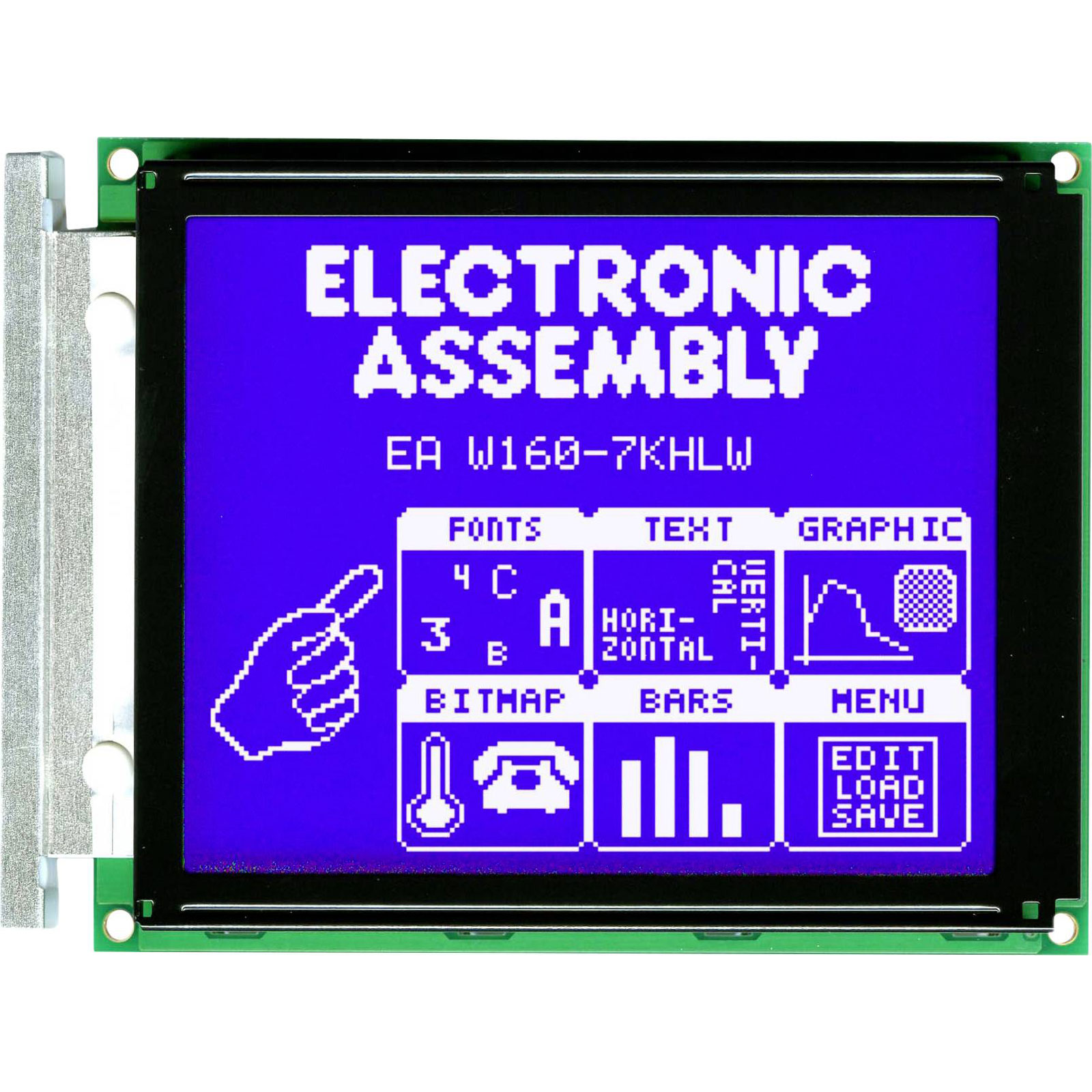

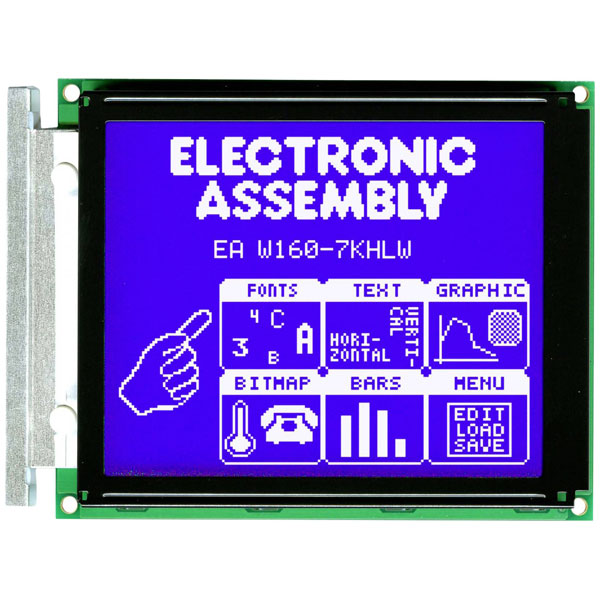

DISPLAY VISIONS EAW160-7KHLWTP LCD 129 x 102 x 19.2 mm Displays Mounts Docking

DISPLAY VISIONS EAW160-7KHLWTP is a versatile liquid crystal display specifically designed for integration into various industrial and commercial applications. Measuring 129 x 102 x 19.2 mm, this graphics display unit is characterised by its Super Twisted Nematic (STN) technology, offering enhanced contrast and viewing angles compared to standard displays. The EAW160-7KHLWTP is suitable for a range of uses, including instrument panels, control systems, and user interfaces where clear graphical representation is required. Its robust construction and advanced features make it a reliable choice for engineers seeking precise visual output in dynamic environments.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 129 x 102 x 19.2 mm
Depth	19.2mm
Height	102mm
Max. operating voltage	5V DC
Max. temperature	70°C
Maximum Temperature	70°C
Min. temperature	-20°C
Minimum Operating Temperature	-20°C
Operating Voltage	5 V DC (max)
Width	129mm
