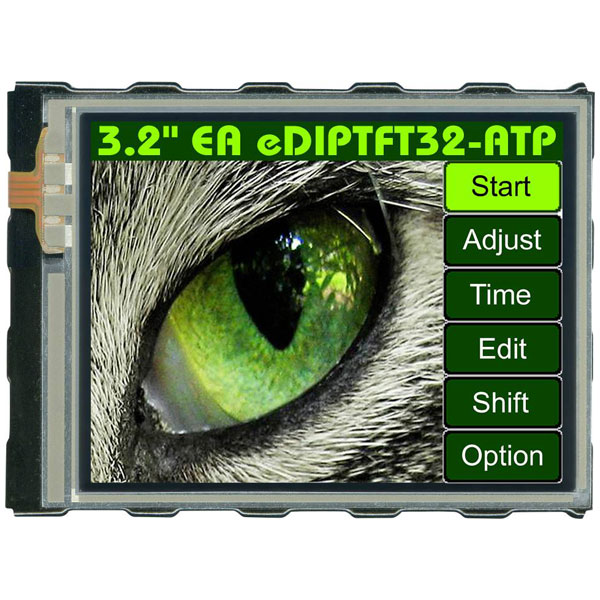

DISPLAY VISIONS EAEDIPTFT32-ATP LCD Display 82x60.5x12.3mm

DISPLAY VISIONS EAEDIPTFT32-ATP is a precision-engineered liquid crystal display designed for advanced graphic rendering in professional applications. Measuring 82 x 60.5 x 12.3 mm, this compact component is ideally suited for integration into devices where space efficiency is paramount. The display employs a combination of technologies, including LED backlighting to enhance visibility and power efficiency, making it an optimal choice for use in diagnostic equipment, industrial control panels, and sophisticated instrumentation. Known for its reliable performance and clear visual output, the EAEDIPTFT32-ATP is also compatible with a range of mounting solutions, thus providing flexibility in installation to meet diverse system requirements. This display offers engineers a robust and adaptable solution for high-precision graphic display needs in demanding environments.

Type	LCD
Dimensions	(W x H x D) 82 x 60.5 x 12.3 mm
Depth	12.3mm
Height	60.5mm
Max. Current Consumption	37mA
Max. operating voltage	5V AC
Max. temperature	70°C
Maximum Temperature	70°C
Min. operating voltage	3.30V AC
Min. temperature	-20°C
Minimum Operating Temperature	-20°C
Operating Voltage	3.30 - 5 V AC
Width	82mm
