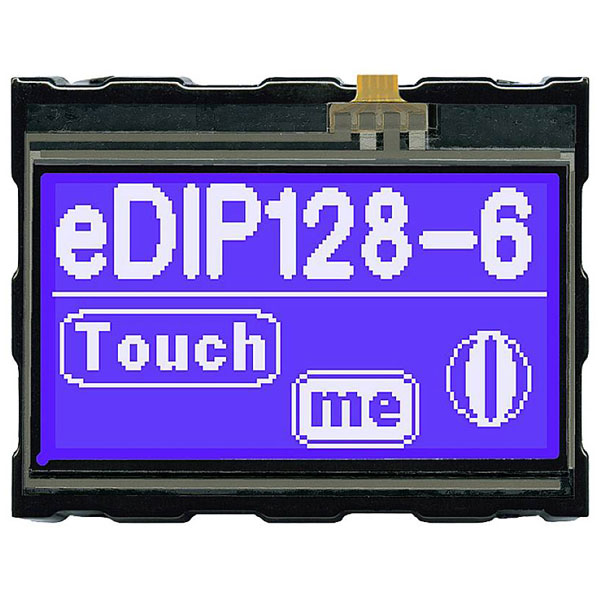

DISPLAY VISIONS EAEDIP128B-6LWTP EAEDIP128B LCD Display 71.4x54.6x13.6mm

DISPLAY VISIONS EAEDIP128B-6LWTP is a compact STN LCD graphics display known for its 128x64 pixel resolution, measuring 71.4 mm in width, 54.6 mm in height, and 13.6 mm in depth. This liquid crystal display employs sophisticated STN (Super Twisted Nematic) technology, which provides improved contrast and readability compared to standard displays. Its robust design and versatile graphics capabilities make it suitable for a wide range of engineering applications, including industrial control systems, medical device interfaces, and automotive displays. Designed for reliability and clarity, the EAEDIP128B-6LWTP offers a practical solution for developers requiring a compact and efficient graphical interface.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 71.4 x 54.6 x 13.6 mm
Character Matrix	128 x 64
Depth	13.6mm
Height	54.6mm
Max. Current Consumption	17mA
Max. operating voltage	5V AC
Max. temperature	70°C
Maximum Temperature	70°C
Min. operating voltage	3.30V AC
Min. temperature	-20°C
Minimum Operating Temperature	-20°C
Operating Voltage	3.30 - 5 V AC
Resolution	128 x 64 Pixel
Width	71.4mm
