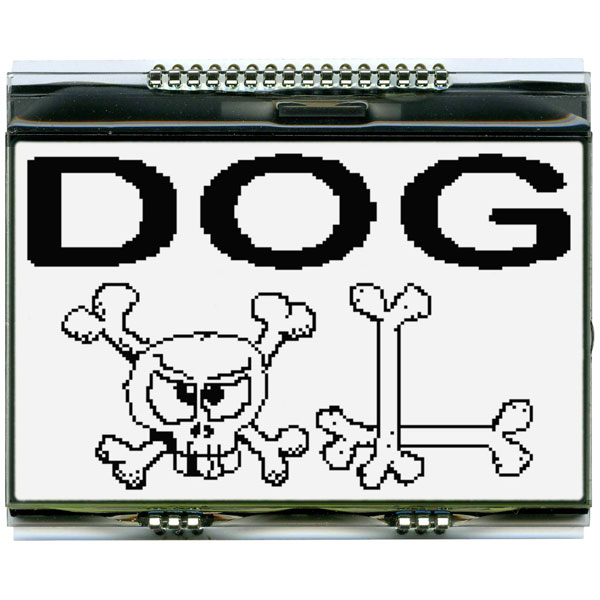

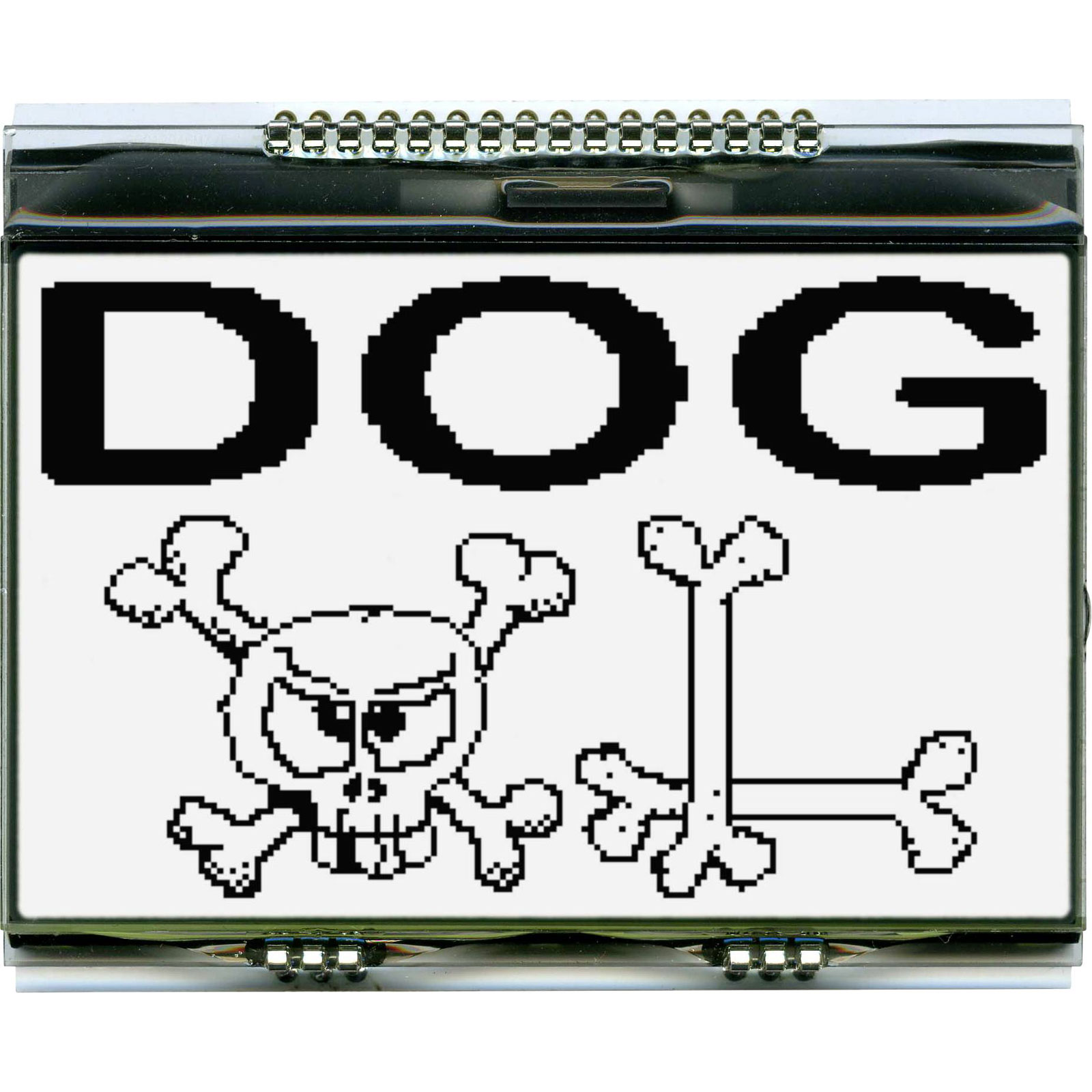

DISPLAY VISIONS EADOGXL160W-7 LCD display 78x64x2.8mm White

DISPLAY VISIONS EADOGXL160W-7 is an advanced LCD display designed with precise dimensions of 78 x 64 x 2.8 mm, ideal for integration into compact electronic systems. This graphics display utilises a super twisted nematic (STN) technology, which provides enhanced viewing angles and improved contrast essential for various professional applications. The product's white backlight ensures clear visibility in variable lighting conditions, making it a versatile choice for environments ranging from industrial control panels to consumer electronics. Commonly used in sectors requiring reliable liquid crystal display technology, this component supports the representation of detailed graphics, which is crucial for engineers developing sophisticated user interfaces.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 78 x 64 x 2.8 mm
Depth	2.8mm
Height	64mm
Max. Current Consumption	0.70mA
Max. temperature	70°C
Maximum Temperature	70°C
Min. operating voltage	3.30V DC
Min. temperature	-20°C
Minimum Operating Temperature	-20°C
Operating Voltage	3.30 V DC (min)
Width	78mm
