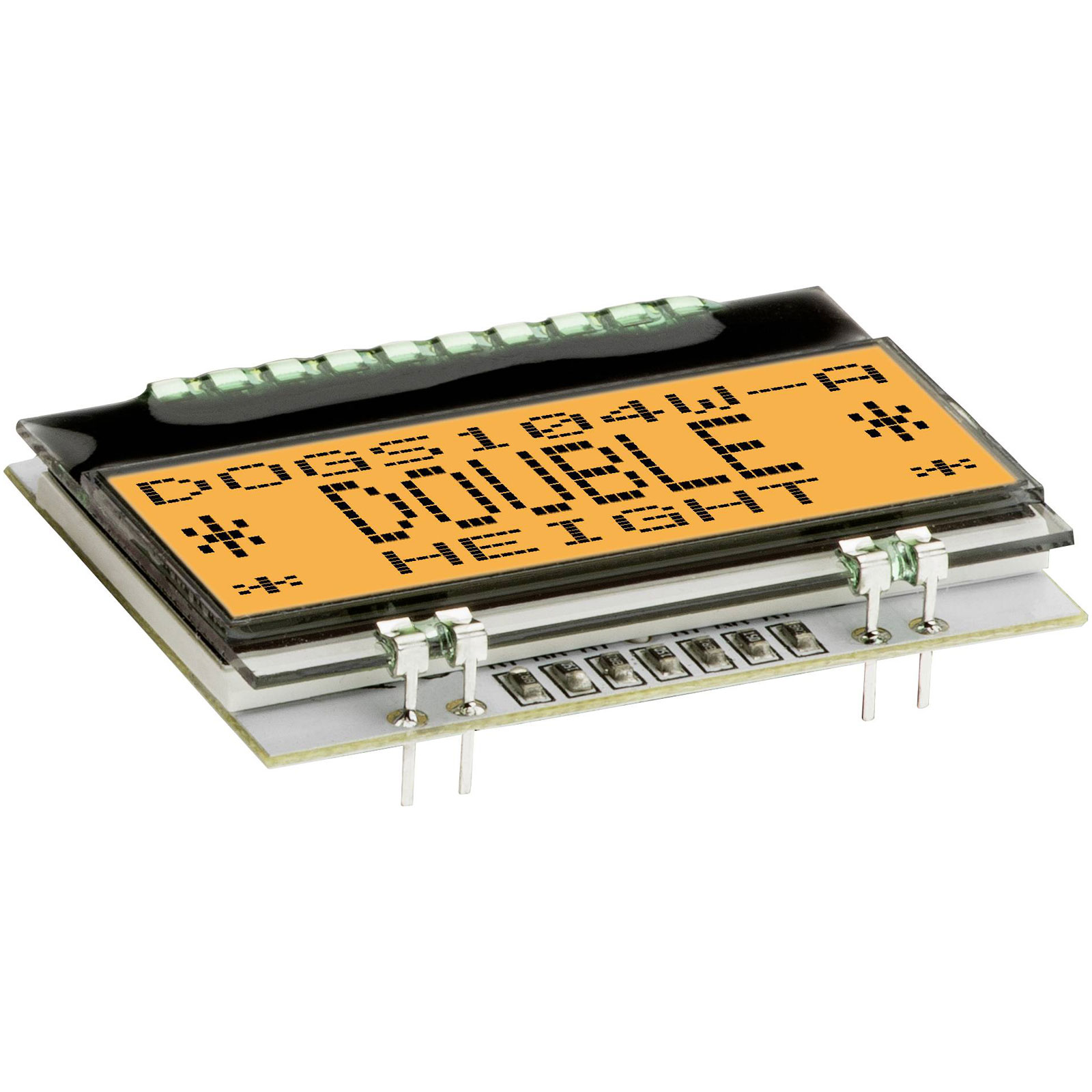

DISPLAY VISIONS EADOGS104W-A LCD 36x27.5x2mm Display White Black

Display Visions EADOGS104W-A is a compact and versatile liquid crystal display with dimensions of 36 mm in width, 27.5 mm in height, and 2 mm in depth. This display employs super-twisted nematic (STN) technology, providing enhanced clarity and contrast ideal for a wide range of graphic display applications. Engineers favour the EADOGS104W-A for its effective use in complex systems requiring visual output, such as industrial control panels, portable instrumentation, and compact embedded systems. Its reliable construction and efficient design make it suitable for environments where space constraints are critical. The display features a white LED backlight on a black mask, ensuring high readability in various lighting conditions.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 36 x 27.5 x 2 mm
Depth	2mm
Height	27.5mm
Max. Current Consumption	0.30mA
Max. operating voltage	3.30V DC
Max. temperature	70°C
Maximum Temperature	70°C
Min. operating voltage	2.70V DC
Min. temperature	-20°C
Minimum Operating Temperature	-20°C
Operating Voltage	2.70 - 3.30 V DC
Width	36mm
