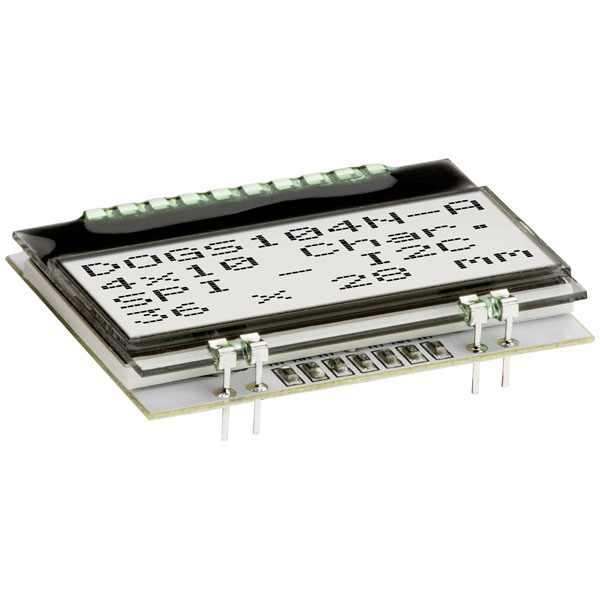

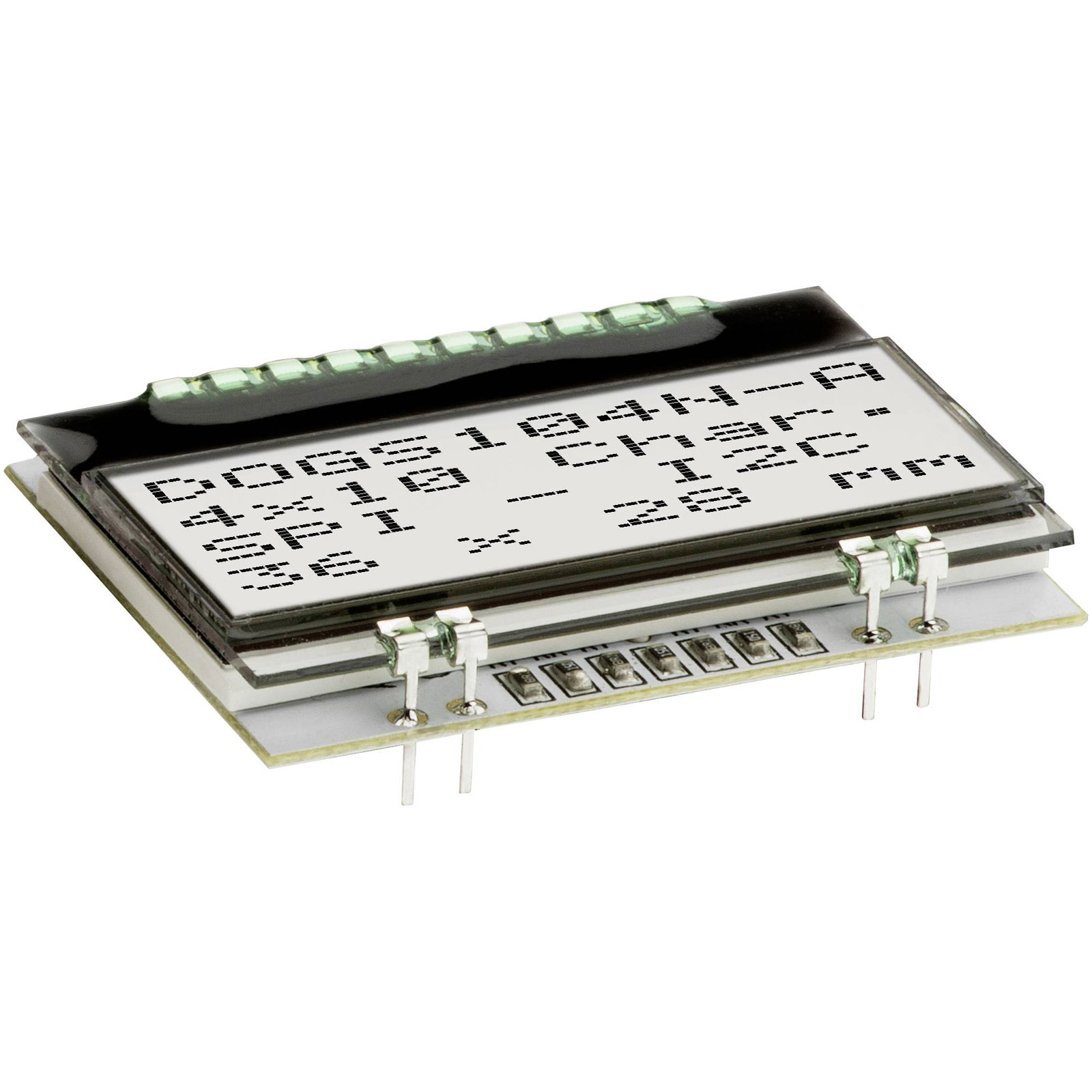

DISPLAY VISIONS EADOGS104N-A DISPLAY VISIONS LCD 36x27.5x2 mm Displays Mounts

DISPLAY VISIONS EADOGS104N-A is a high-quality liquid crystal display engineered for precision and reliability. This LCD measures 36 x 27.5 x 2 mm, making it a compact choice for use in space-constrained applications. It features state-of-the-art super-twisted nematic (STN) technology, ensuring excellent visibility and contrast for graphical displays. The unit is ideal for integration into embedded systems, industrial control panels, and various other instrumentation where clear readouts are essential. Designed for ease of mounting, this display offers flexibility and efficiency in a range of engineering projects.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 36 x 27.5 x 2 mm
Depth	2mm
Height	27.5mm
Max. Current Consumption	0.30mA
Max. operating voltage	3.30V DC
Max. temperature	70°C
Maximum Temperature	70°C
Min. operating voltage	2.70V DC
Min. temperature	-20°C
Minimum Operating Temperature	-20°C
Operating Voltage	2.70 - 3.30 V DC
Width	36mm
