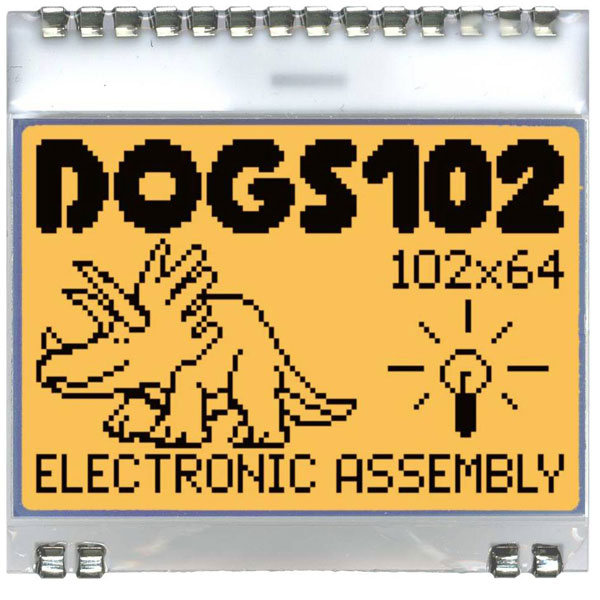

DISPLAY VISIONS EADOGS102W-6 LCD Display 39x41x2mm White

DISPLAY VISIONS EADOGS102W-6 is a sophisticated liquid crystal display (LCD) module featuring precise dimensions of 39 mm in width, 41 mm in height, and 2 mm in depth. Designed as a monochrome graphical display, it utilises advanced super-twisted nematic (STN) technology to achieve better contrast and faster response times than standard LCDs. This module is ideally suited for applications requiring efficient and compact displays, such as in industrial control panels, medical instrumentation, and consumer electronics. Its versatility in mounting and docking tasks makes it a reliable option for engineers seeking to integrate high-quality visual displays into various system environments.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 39 x 41 x 2 mm
Depth	2mm
Height	41mm
Max. Current Consumption	0.25mA
Max. operating voltage	3.30V DC
Max. temperature	70°C
Maximum Temperature	70°C
Min. operating voltage	2.70V DC
Min. temperature	-20°C
Minimum Operating Temperature	-20°C
Operating Voltage	2.70 - 3.30 V DC
Width	39mm
