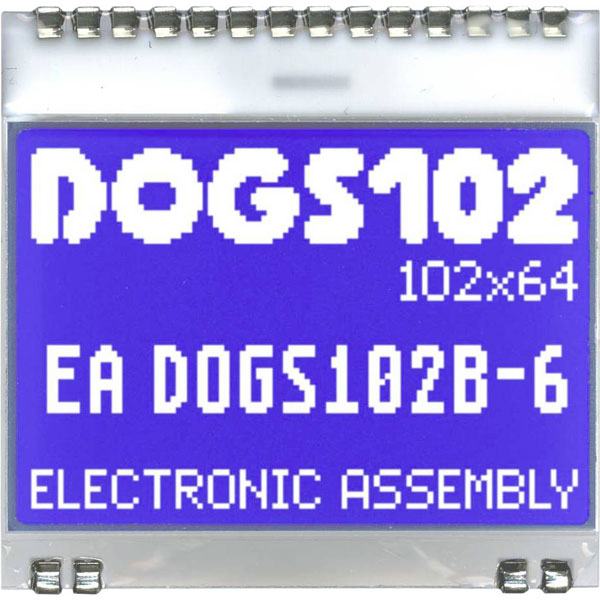

DISPLAY VISIONS EADOGS102B-6 LCD Display 39x41x2mm WxHxD

DISPLAY VISIONS EADOGS102B-6 is an advanced LCD display designed for precise graphical representation, featuring dimensions of 39 x 41 x 2 mm. This liquid crystal display (LCD) utilises super-twisted nematic (STN) technology to provide clear and efficient visual outputs, making it ideal for a variety of applications that demand reliability and clarity. Typical uses include integration into industrial control systems, portable devices, and instrumentation panels where space is constrained and high-quality graphical displays are essential. The module's compact design and performance capabilities cater to engineers seeking a robust solution for embedding into sophisticated electronic systems.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 39 x 41 x 2 mm
Depth	2mm
Height	41mm
Max. Current Consumption	0.25mA
Max. operating voltage	3.30V DC
Max. temperature	70°C
Maximum Temperature	70°C
Min. operating voltage	2.70V DC
Min. temperature	-20°C
Minimum Operating Temperature	-20°C
Operating Voltage	2.70 - 3.30 V DC
Width	39mm
