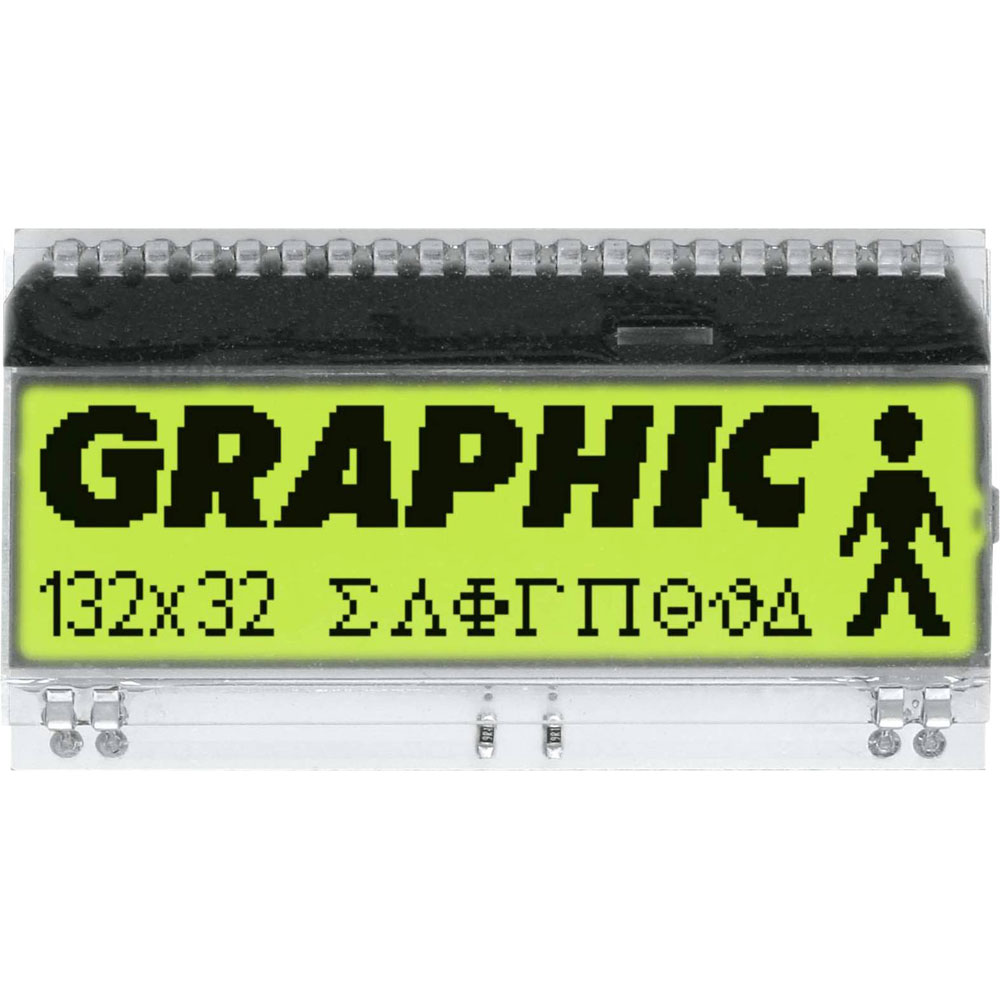

DISPLAY VISIONS EADOGM132E5 LCD Display 55x31x2mm

DISPLAY VISIONS EADOGM132E-5, is an advanced liquid crystal display (LCD) unit measuring 55 x 31 x 2 mm, demonstrating a compact solution for embedded systems and portable electronics. This graphics display utilises super-twisted nematic (STN) technology, offering improved contrast and lower power consumption, making it suitable for battery-operated devices. Engineered for diverse applications, the display is well-suited for integration into medical equipment, industrial controls, and handheld instruments, where clear visual representation of data is essential. The module's design facilitates seamless integration into a variety of devices, supporting both monochrome images and simple graphics.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 55 x 31 x 2 mm
Depth	2mm
Height	31mm
Max. Current Consumption	0.14mA
Max. operating voltage	3.30V DC
Max. temperature	70°C
Maximum Temperature	70°C
Min. operating voltage	2.70V DC
Min. temperature	-20°C
Minimum Operating Temperature	-20°C
Operating Voltage	2.70 - 3.30 V DC
Width	55mm
