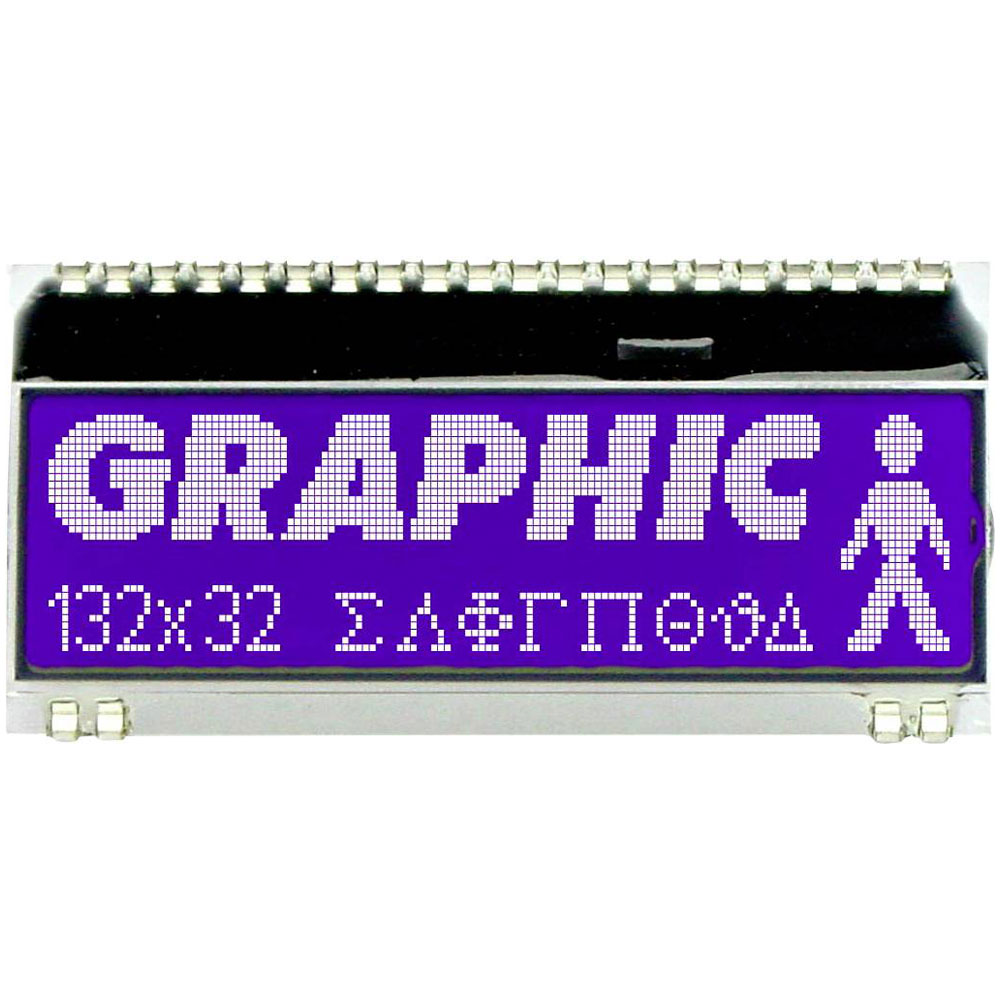

DISPLAY VISIONS EADOGM132B-5 LCD 55 x 31 x 2 mm

DISPLAY VISIONS EADOGM132B-5 is a compact and reliable graphics display module that measures 55 x 31 x 2 mm. This liquid crystal display (LCD) utilises super-twisted nematic (STN) technology, ensuring a precise and clear visual output with an efficient power footprint. The module is designed for efficient integration into diverse applications, including industrial control panels, consumer electronics, and portable instrumentation where space and power efficiency are critical. Its versatility and durability make it a suitable choice for engineers seeking a robust solution for interfaces that require graphic display capability.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 55 x 31 x 2 mm
Depth	2mm
Height	31mm
Max. Current Consumption	0.14mA
Max. operating voltage	3.30V DC
Max. temperature	70°C
Maximum Temperature	70°C
Min. operating voltage	2.70V DC
Min. temperature	-20°C
Minimum Operating Temperature	-20°C
Operating Voltage	2.70 - 3.30 V DC
Width	55mm
