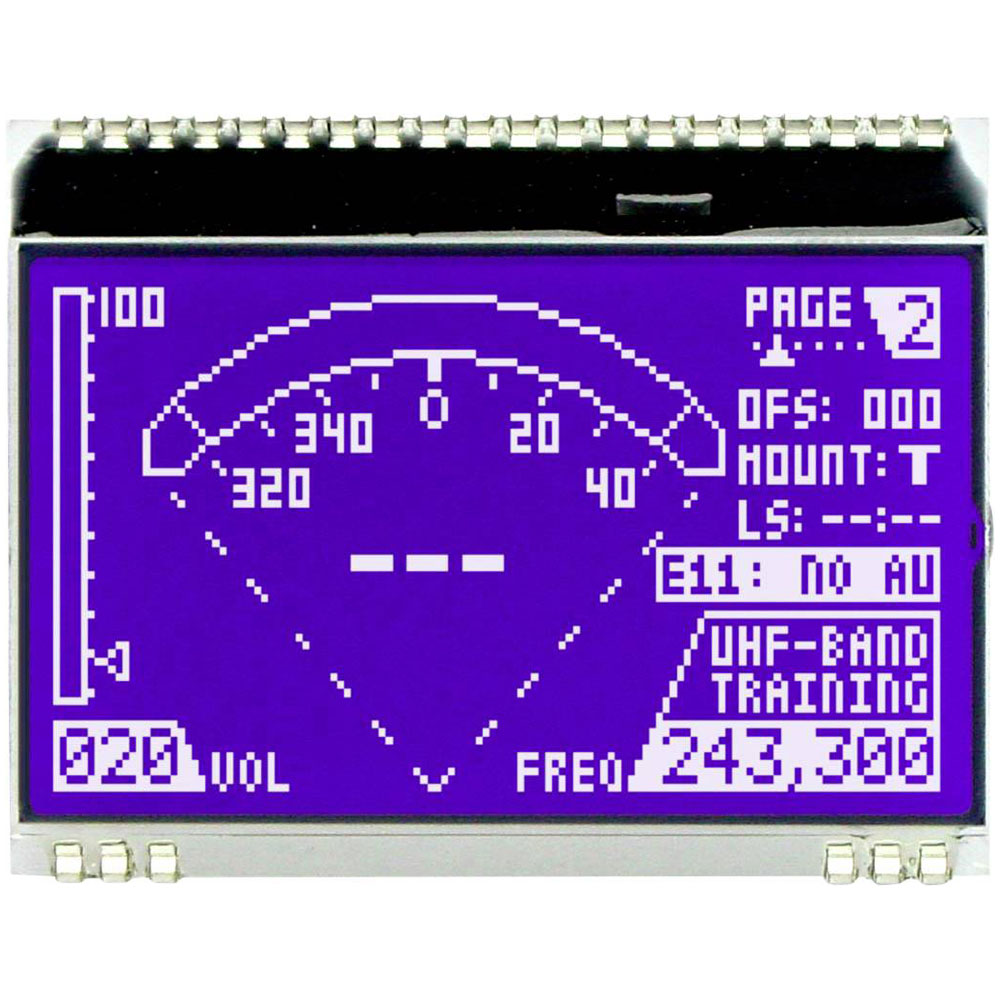

DISPLAY VISIONS EADOGM128B-6 LCD Display 55x46x2mm W x H x D

DISPLAY VISIONS EADOGM128B-6 is an advanced LCD graphics display notable for its compact dimensions of 55 x 46 x 2 mm, optimally suited for integrating into space-constrained electronic systems. This liquid crystal display (LCD) module employs super-twisted nematic (STN) technology, enabling reliable and efficient visual output while minimising power consumption. Due to its robustness and efficient visual clarity, the EADOGM128B-6 is ideally employed in a range of engineering applications, including industrial control panels and portable instrumentation. The ability of this display to provide clear graphical representations makes it a preferred choice for systems that require intricate data display capabilities. Its compatibility with various mounting and docking configurations further enhances its integration flexibility in diverse electronic designs.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 55 x 46 x 2 mm
Depth	2mm
Height	46mm
Max. Current Consumption	0.27mA
Max. temperature	70°C
Maximum Temperature	70°C
Min. operating voltage	3.30V DC
Min. temperature	-20°C
Minimum Operating Temperature	-20°C
Operating Voltage	3.30 V DC (min)
Width	55mm
