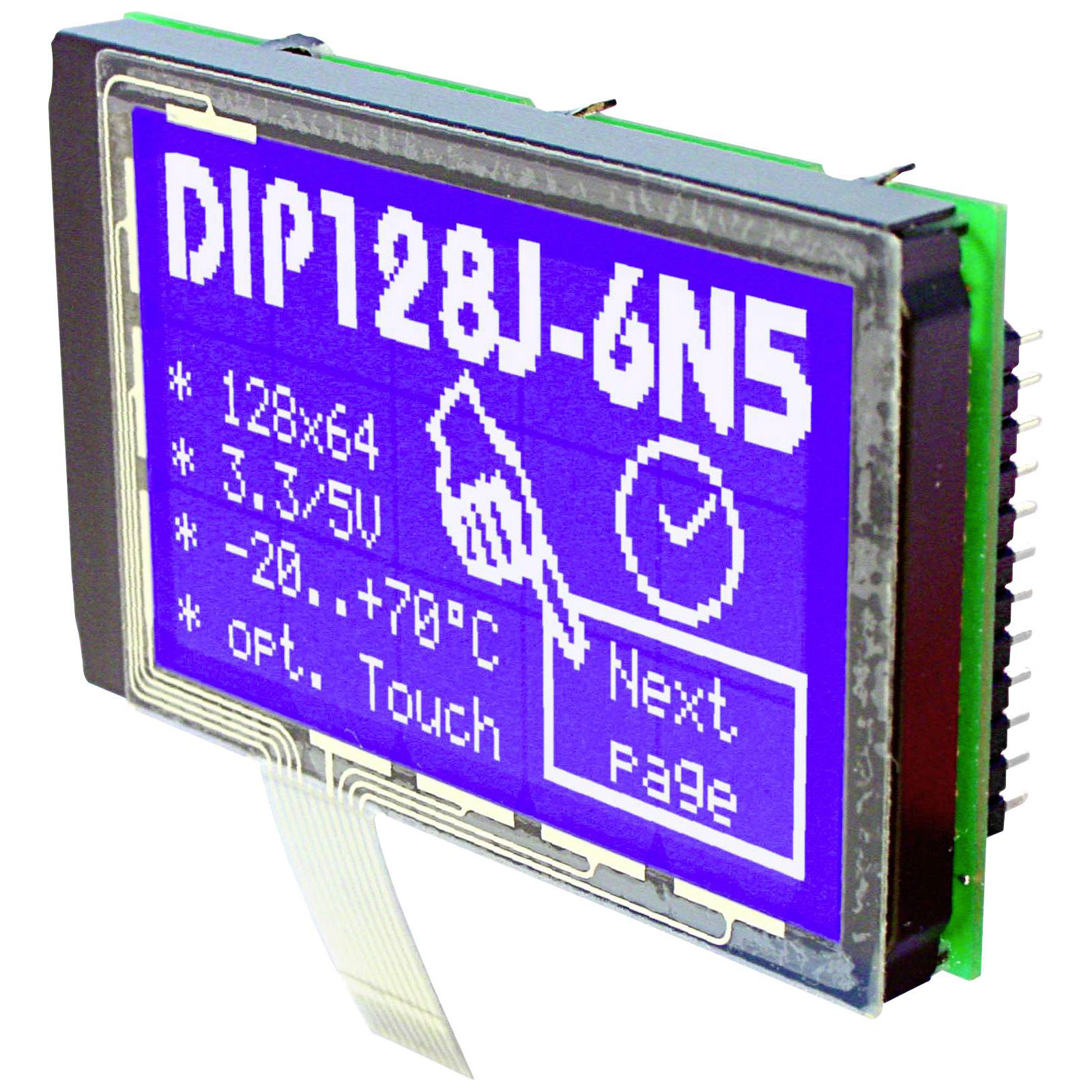

DISPLAY VISIONS EADIP128-6N5LWTP LCD Display 75x45.8x10.8mm

Display Visions EADIP128-6N5LWTP is a monochrome liquid crystal display panel designed for precision graphics rendering, measuring 75 x 45.8 x 10.8 mm. This particular model incorporates super-twisted nematic (STN) technology, which enhances visual clarity and contrast, making it suitable for intricate and detailed graphical user interfaces. It features a robust and efficient LED backlighting system, ensuring consistent illumination and excellent readability in various lighting conditions. The display is primarily employed in applications such as industrial control panels, measuring instruments, and consumer electronics, where detailed visual output and reliability are paramount. Its compact dimensions and advanced display properties make it an ideal choice for engineers aiming to integrate dependable and high-quality visual interfaces into sophisticated devices.

Type	LCD
Depth	10.8mm
Dimensions	(W x H x D) 75 x 45.8 x 10.8 mm
Height	45.8mm
Max. current consumption	5mA
Max. operating voltage	5V DC
Maximum Temperature	70°C
Minimum Temperature	-20°C
Operating Voltage	5 V DC (max)
Width	75mm
