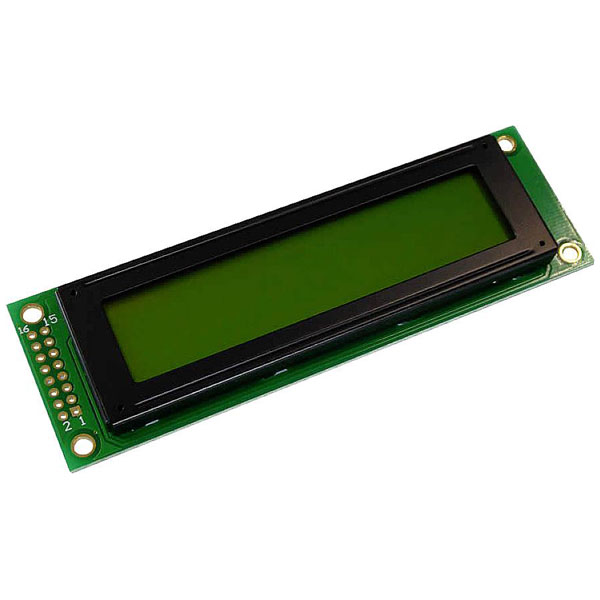

Display Elektronik DEM24251SYH-PY LCD Yellow-green 116x37x8.6mm Display

Display Elektronik DEM24251SYH-PY is a yellow-green LCD designed for precise graphical applications, measuring 116 x 37 x 8.6 mm. This module employs super twisted nematic (STN) technology, advantageous for its wide viewing angles and low power consumption, making it suitable for battery-powered devices. As a liquid crystal display (LCD), the DEM24251SYH-PY excels in applications that require a clear visual interface, such as control panels, industrial instrumentation, and handheld devices. This product's dimensions and effective visual output are optimised for diverse engineering uses, ensuring reliable performance in environments where space and clarity are paramount. The combination of its compact form factor and high visual quality signifies its adaptability across numerous electronic design projects.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 116 x 37 x 8.6 mm
Background Colour	Yellow & Green
Character Matrix	24 x 2
Controller Type	HD44780 Compatible
Depth	8.6mm
Digit Height	5.55mm
Height	37mm
Light area (Height)	18.6mm
Light area (width)	83mm
Lighting Type	LED
Maximum Temperature	+70°C
Minimum Temperature	-20°C
Operating Voltage	5V DC
Width	116mm
