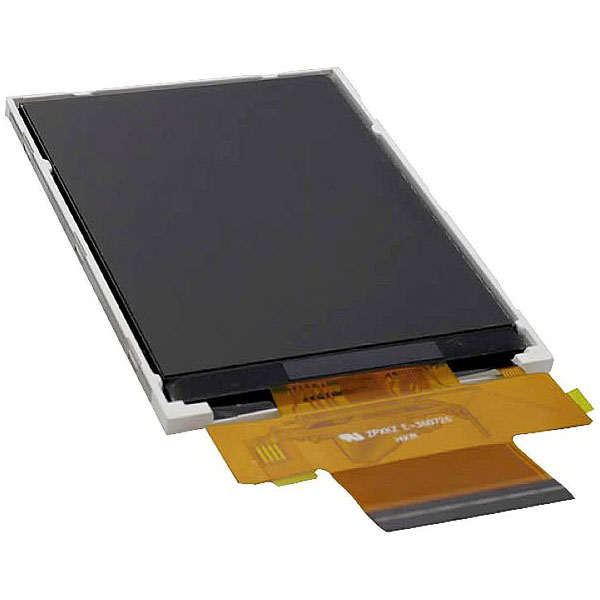

Display Elektronik DEM240320KTMH-PW-N LCD White 240x320 Pixel 50x69.2x2.5mm

Display Elektronik DEM240320KTMH-PW-N is a liquid crystal display (LCD) module characterised by a resolution of 240x320 pixels and physical dimensions of 50x69.2x2.5 mm. This display module employs super twisted nematic (STN) technology, providing enhanced viewing angles and improved contrast, which makes it suitable for a range of graphics display applications. Engineered for integration into various electronic devices, it is typically utilised in industrial instruments, consumer electronics, and portable equipment where detailed visual output is critical. The display's construction ensures reliable performance in both indoor and outdoor environments, making it a versatile option for engineers designing interfaces in compact spaces.

Type	LCD
Background Colour	White
Controller Type	ILI9341V
Depth	2.5mm
Dimensions	(W x H x D) 50 x 69.2 x 2.5 mm
Display Resolution	240 x 320 Pixel
Height	69.2mm
Light area (Height)	57.6mm
Light area (Width)	43.2mm
Lighting type	LED
Maximum Temperature	+70°C
Minimum Temperature	-20°C
Operating Voltage	3V DC
Screen size diagonal (cm)	7.112cm
Screen size diagonal (inches)	2.8inch
Width	50mm
