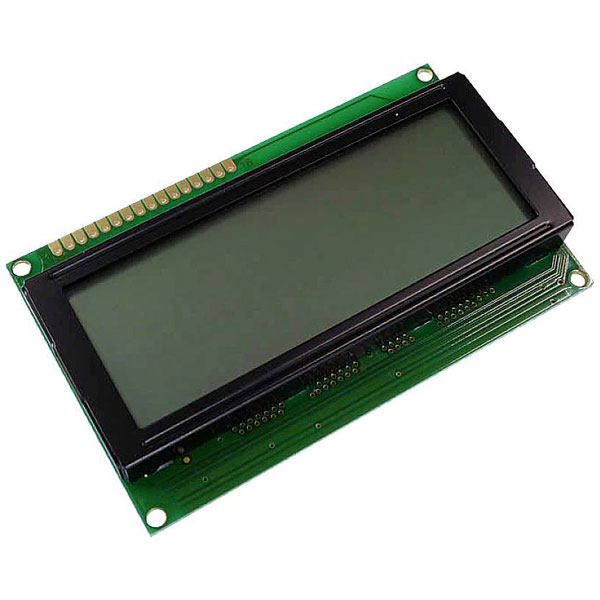

Display Elektronik DEM20486FGH-PW LCD White 20x4 Pixel 98x60x11.6mm

Display Elektronik DEM20486FGH-PW is a liquid crystal display (LCD) module designed for graphical output, featuring a monochrome white display matrix arranged in a configuration of 20 columns by 4 rows. Constructed with an STN (Super Twisted Nematic) technology, this component allows for efficient optical performance, particularly in environments with dynamic ambient lighting conditions. Measuring 98 mm in width, 60 mm in height, and 11.6 mm in depth, it is compactly engineered for integration into various electronic systems, such as industrial control panels, consumer electronics, and embedded devices where clear visibility is imperative. The display's robust design and reliable performance make it suitable for applications requiring a balance of clarity and durability.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 98 x 60 x 11.6 mm
Background Colour	White
Character Matrix	20 x 4
Controller Type	HD44780 Compatible
Depth	11.6mm
Digit Height	6.35mm
Height	60mm
Light area (Height)	30.5mm
Light area (width)	85mm
Lighting Type	LED
Maximum Temperature	+70°C
Minimum Temperature	-20°C
Operating Voltage	5V DC
Resolution	20 x 4 Pixel
Width	98mm
