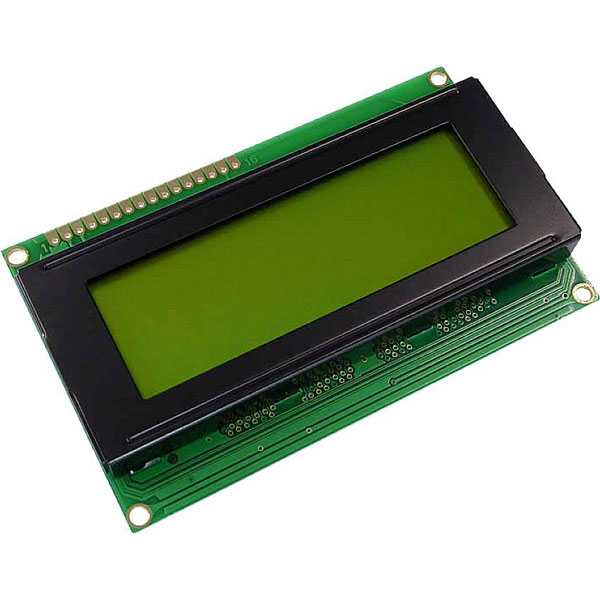

Display Elektronik DEM20485SYH-LY LCD Yellow-green 20x4 Pixel 98x60x11.6mm

Display Elektronik DEM20485SYH-LY is an STN LCD module featuring a yellow-green display with a resolution of 20x4 characters, housed within dimensions of 98x60x11.6 mm. The module utilises standard transmissive LCD technology to deliver clear textual data, making it suitable for applications requiring straightforward text display capabilities, such as industrial control panels, instrumentation, and embedded systems. This graphic display component is engineered to fit seamlessly into environments where visual information needs to be conveyed succinctly and reliably, providing a stable and efficient solution for engineers requiring a robust interface with low power consumption.

Type	LCD
Background Colour	Yellow & Green
Character Style	20 x 4
Controller Type	HD44780 Compatible
Depth	11.6mm
Digit Height	4.75mm
Dimensions	(W x H x D) 98 x 60 x 11.6 mm
Display Resolution	20 x 4 Pixel
Height	60mm
Light area (Height)	25mm
Light area (Width)	76.3mm
Lighting type	LED
Maximum Temperature	+70°C
Minimum Temperature	-20°C
Operating Voltage	5V DC
Width	98mm
