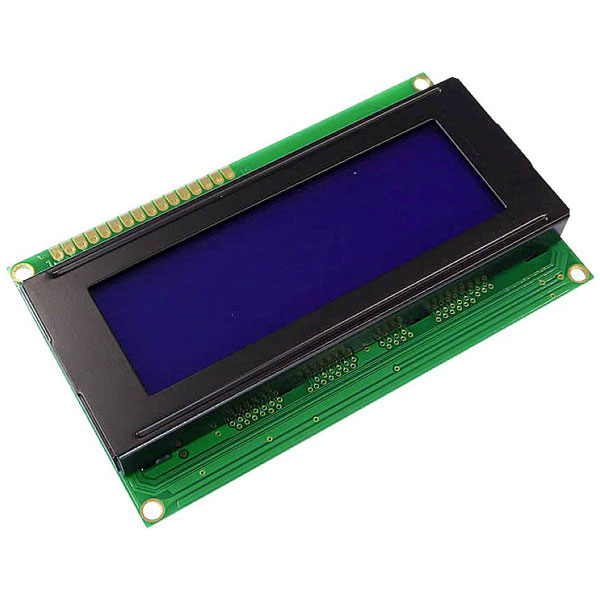

Display Elektronik DEM20485SBH-PW-N LCD White 20x4 Pixel 98x60x11.6mm

Display Elektronik DEM20485SBH-PW-N is a liquid crystal display that features a white monochrome display with a resolution of 20 characters by 4 lines, set within dimensions of 98mm by 60mm by 11.6mm. This STN (Super Twisted Nematic) display is designed to provide clear, crisp character rendering, which makes it suitable for applications requiring straightforward text displays, such as instrumentation panels, control systems, and embedded systems interfaces. The display's modest power requirements and reliable LED backlighting enhance its utility in various engineering contexts, ensuring it remains visible in diverse lighting conditions. Its robust construction and efficient size make it an ideal choice for integration into devices where space conservation and clarity of information display are essential.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 98 x 60 x 11.6 mm
Background Colour	White
Character Matrix	20 x 4
Controller Type	HD44780 Compatible
Depth	11.6mm
Digit Height	4.75mm
Height	60mm
Light area (Height)	25mm
Light area (width)	76.3mm
Lighting Type	LED
Maximum Temperature	+70°C
Minimum Temperature	-20°C
Operating Voltage	5V DC
Resolution	20 x 4 Pixel
Width	98mm
