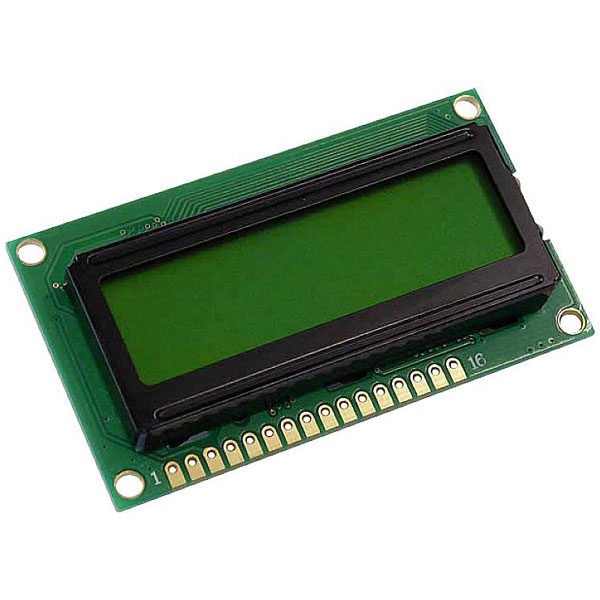

Display Elektronik DEM16226SYH-LY LCD 16x2 Pixel Yellow-green 65.5x36.7x9.6 mm

Display Elektronik DEM16226SYH-LY is a liquid crystal display (LCD) characterised by its 16x2 pixel configuration, providing a straightforward interface for displaying characters in a compact form. The module measures 65.5 mm by 36.7 mm by 9.6 mm and features a yellow-green visual appearance, which enhances readability in various lighting conditions. This STN (Super Twisted Nematic) display technology offers improved performance in terms of viewing angles and response times compared to standard nematic displays, making it suitable for applications in consumer electronics, industrial equipment, and embedded systems where reliable text output is required. This display unit integrates seamlessly into devices where information display is crucial, delivering clear and efficient communication of data to users.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 65.5 x 36.7 x 9.6 mm
Background Colour	Yellow & Green
Character Matrix	16 x 2
Controller Type	HD44780 Compatible
Depth	9.6mm
Digit Height	4.67mm
Height	36.7mm
Light area (Height)	14.8mm
Light area (width)	51.8mm
Lighting Type	LED
Maximum Temperature	+70°C
Minimum Temperature	-20°C
Operating Voltage	5V DC
Resolution	16 x 2 Pixel
Width	65.5mm
