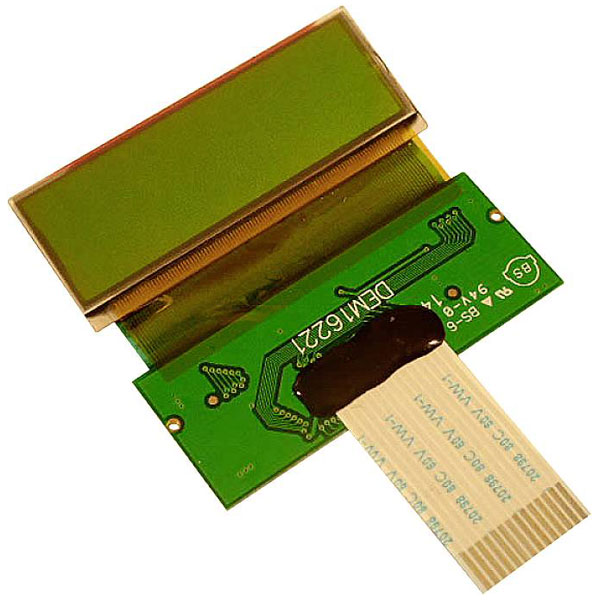

Display Elektronik DEM16221SYH LCD 16x2 Pixel 47x18x2mm

Display Elektronik DEM16221SYH is a compact liquid crystal display (LCD) module featuring a 16x2 character format, designed for efficient visual data representation. With dimensions of 47 millimetres in width, 18.5 millimetres in height, and a depth of 2 millimetres, its slim profile makes it suitable for integration into space-constrained applications. This module employs super-twisted nematic (STN) technology, which provides optimal readability and low power consumption, making it suitable for use in battery-powered devices, control panels, and instrumentation displays. The display's robust solder-type construction ensures reliable performance in various operating environments, thereby making it a versatile choice for engineers seeking an efficient display solution.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 47 x 18.5 x 2 mm
Character Matrix	16 x 2
Controller Type	HD44780 Compatible
Depth	2mm
Digit Height	3.8mm
Height	18.5mm
Light area (Height)	12mm
Light area (width)	43mm
Lighting Type	None
Maximum Temperature	+70°C
Minimum Temperature	-20°C
Operating Voltage	5V DC
Resolution	16 x 2 Pixel
Width	47mm
