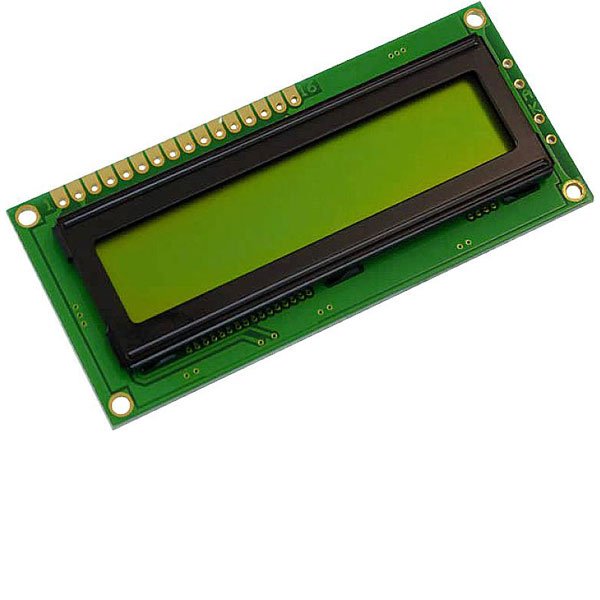

Display Elektronik DEM16213SYH LCD Display16x2 Pixel 80x36x6.6mm

Display Elektronik DEM16213SYH is a high-quality liquid crystal display module characterised by its 16x2 pixel resolution. The module measures 80x36x6.6 mm, making it compact and suitable for integration into a variety of compact electronic applications. The display utilises super twisted nematic (STN) technology, providing improved contrast and better viewing angles compared to traditional twisted nematic displays. Typical applications for this LCD include use in industrial control panels, home automation systems, and other electronics that require reliable alphanumeric display capabilities. Its robust design and efficient LCD technology make it a preferred choice for engineers dealing with constrained space and low power requirements.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 80 x 36 x 6.6 mm
Character Matrix	16 x 2
Controller Type	HD44780 Compatible
Depth	6.6mm
Digit Height	4.35mm
Height	36mm
Light area (Height)	13.8mm
Light area (width)	63.5mm
Lighting Type	None
Maximum Temperature	+70°C
Minimum Temperature	-20°C
Operating Voltage	5V DC
Resolution	16 x 2 Pixel
Width	80mm
