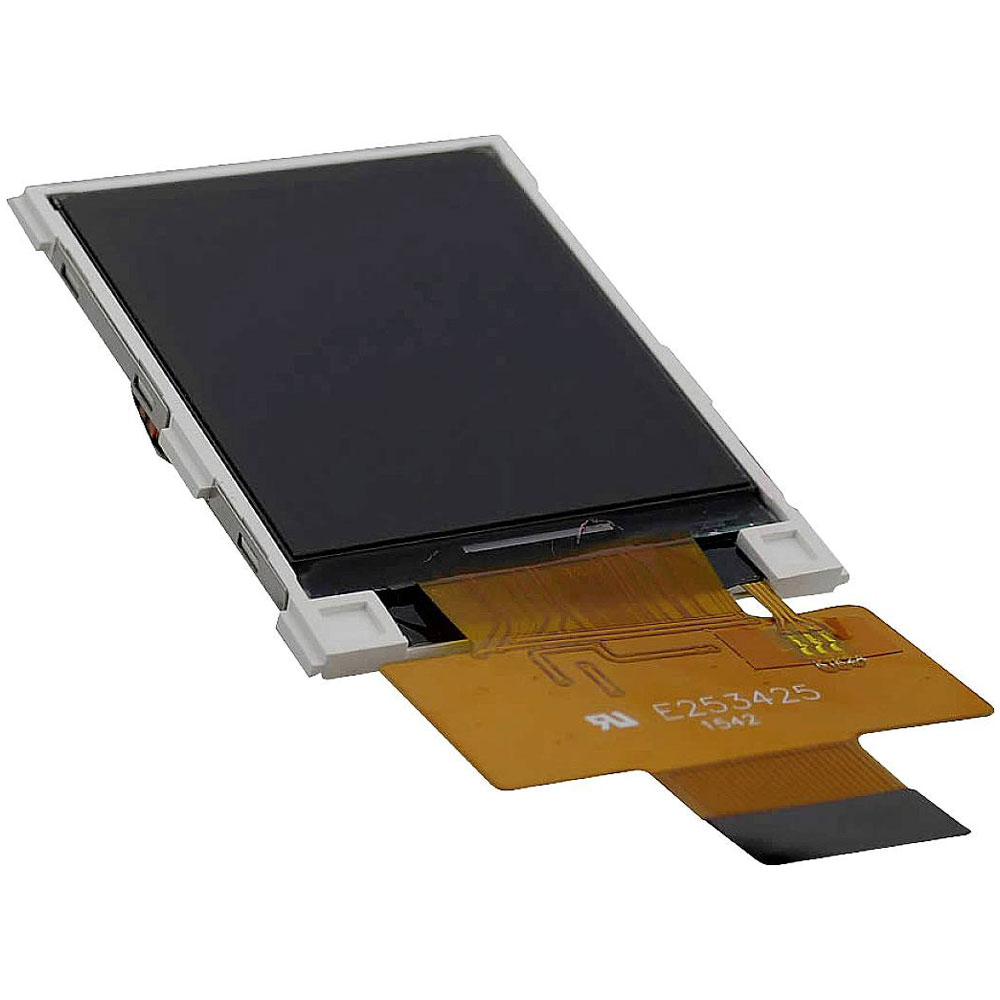

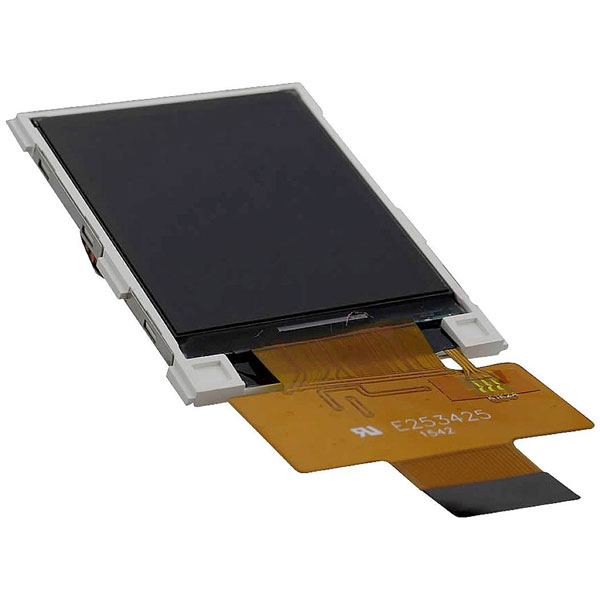

Display Elektronik DEM128160A1TMH-PWN LCD Display White WxHxD 36.3x47.8x2.43mm

Display Elektronik DEM128160A1TMH-PWN is a precise, high-performance LCD intended for a variety of engineering utilisations. As a 128x160 pixel graphics display with a compact form factor of 36.3x47.8x2.43 mm, it integrates a super-twisted nematic (STN) configuration which enhances visibility through superior contrast and response times. This liquid crystal display utilises white LED backlighting, providing consistent illumination for clear image rendering in diverse lighting conditions. Designed for use in instruments requiring compact display solutions, it is often employed in handheld devices, industrial instrumentation, and consumer electronics where dependable graphic representation is paramount. The rigorous construct and efficient operation make it ideal for embedding in sophisticated systems demanding reliable performance.

Type	LCD
Display Type	STN
Dimensions	(W x H x D) 36.3 x 47.8 x 2.43 mm
Background Colour	White
Controller Type	ST7735S (Sitronix)
Depth	2.43m
Height	47.8mm
Light area (Height)	35.04mm
Light area (width)	28.03mm
Lighting Type	LED
Maximum Temperature	+70°C
Minimum Temperature	-20°C
Operating Voltage	3V DC
Resolution	128 x 60 Pixel
Screen size diagonal (cm)	4.4958cm
Screen size diagonal (inches)	1.77inch
Width	36.3mm
