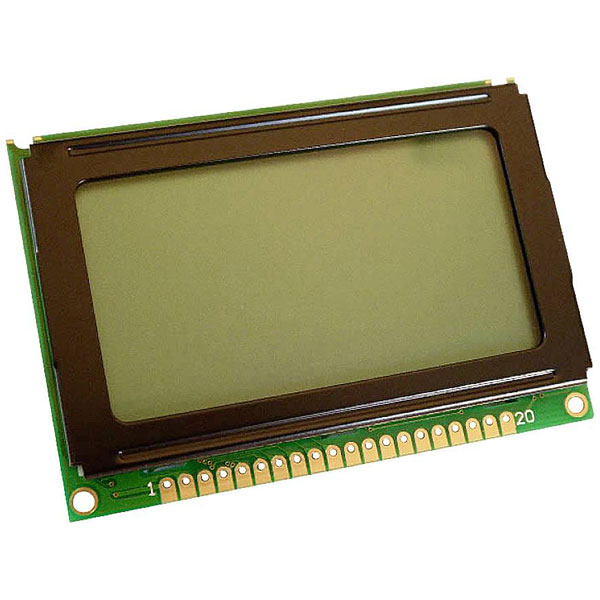

Display Elektronik DEM128064BFGH-PW LCD Black White 128x64 Pixel 75x52.7x7mm

Display Elektronik DEM128064BFGH-PW is a monochrome liquid crystal display with a resolution of 128x64 pixels. Measuring 75 mm by 52.7 mm and having a thickness of 7 mm, this graphic LCD is designed for compact spaces, making it suitable for applications such as handheld devices, industrial control panels, and portable testing equipment. Incorporating super twisted nematic (STN) technology, this display offers improved contrast and viewing angles compared to standard twisted nematic (TN) displays, which enhances visibility in varied lighting conditions. Utilising passive matrix technology, it is efficient for low-power applications, ensuring extended operational times in battery-powered devices.

Type	LCD
Background Colour	White
Controller Type	SBN6400G + SBN0064G
Depth	7mm
Dimensions	(W x H x D) 75 x 52.7 x 7 mm
Display Resolution	128 x 64 Pixel
Font Colour	Black
Height	52.7mm
Light area (Height)	32.6mm
Light area (Width)	60mm
Lighting type	LED
Maximum Temperature	+70°C
Minimum Temperature	-20°C
Operating Voltage	5V DC
Screen size diagonal (cm)	6.1cm
Screen size diagonal (inches)	2.4inch
Type (display)	FSTN
Width	75mm
