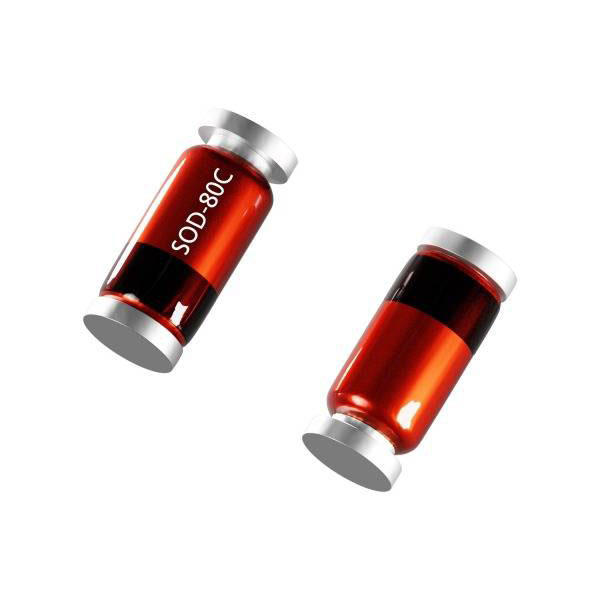

Diotec LL101B Schottky Diode SOD 80 50V Schottky Diodes

Diotec LL101B is a high-performance Schottky diode housed in a compact SOD 80 package, designed for applications requiring efficient rectification. It features a low forward voltage drop and a high-speed switching capability, making it particularly suitable for use in high-frequency circuits. With a maximum reverse voltage of 50 volts, it is ideal for use as a blocking diode in power supply circuits and as a rectifier in RF and microwave applications. The LL101B utilises a PN junction to achieve its characteristic low forward voltage and high efficiency, making it a versatile choice for engineers looking to optimise power management in their designs. Its robust design and reliable performance ensure it meets the rigorous demands of modern electronic systems.

Type	Schottky diode
Content	1
Enclosure	SOD 80
Forward current I(F)	2A
Forward Voltage U(F)	0.95V
Mounting Type	Surface-mount
Operating temperature (max.)	125°C
Peak forward surge Current I(FSM)	2A
Product Type	Schottky diode
Reverse leakage Current I(r)	0.200µA
Reverse Voltage U(R)	50V
