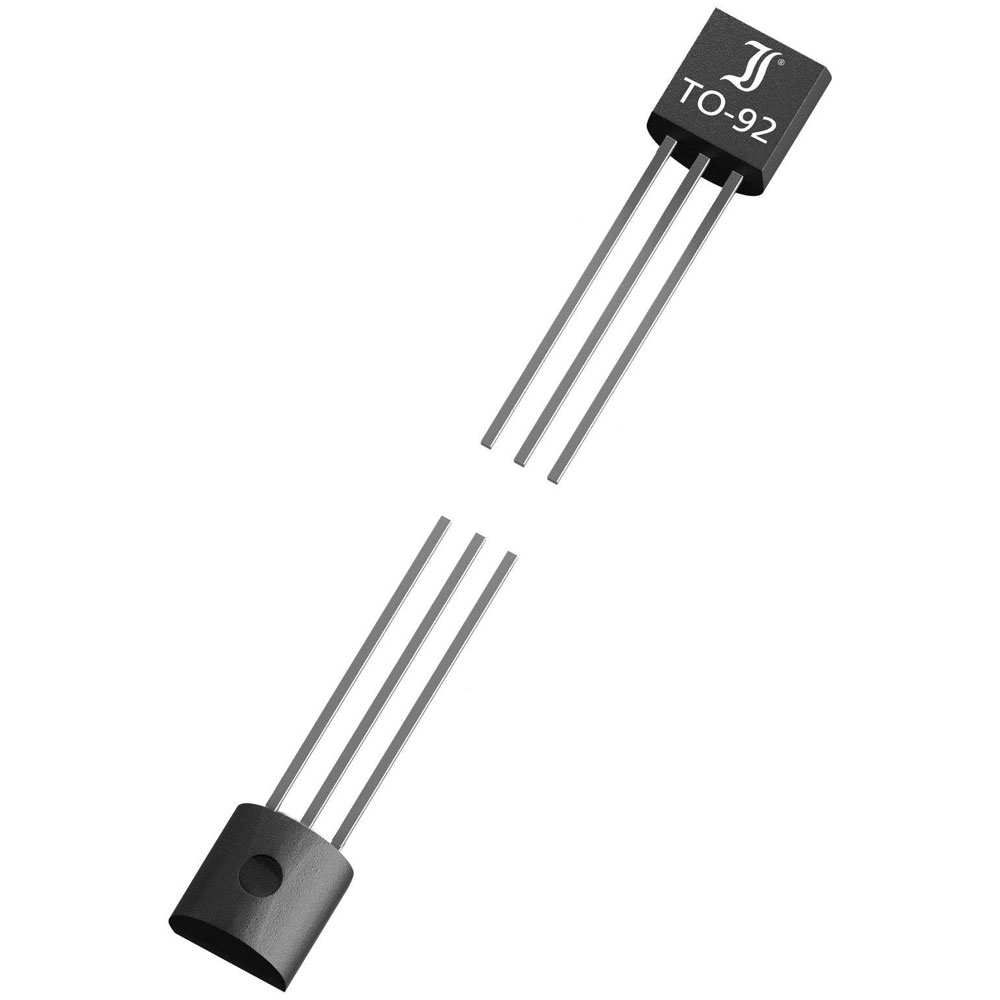

Diotec BC547BBK Transistor BJT Discrete NPN TO-92BK

Diotec BC547BBK Transistor is a discrete NPN bipolar junction transistor (BJT) designed for general-purpose amplification and switching applications. Encased in a TO-92BK package, the BC547BBK is ideally suited for low-current, low-power applications with a maximum collector current of 100 mA and a collector-emitter voltage of 45 V. Its small signal gain, stability over a wide range of temperatures, and ease of use make it a reliable choice for hobbyists and engineers alike. Commonly deployed in analogue signal amplification, the BC547BBK is also used in switching applications within consumer electronics and other low-power electronic circuits.

Type	Transistor (BJT) - Discrete
Collector Current	100mA
Collector emitter Voltage U(CEO)	45V
Collector-emitter saturation Voltage (max.)	600mV
Content	1
DC Current Gain (hfe)	200
Enclosure	TO-92BK
Mounting Type	Through-hole mounting
Operating temperature (max.)	150°C
Power (max) P(TOT)	0.5W
Product Type	Transistor (BJT) - Discrete
Transit frequency f(T)	100MHz
