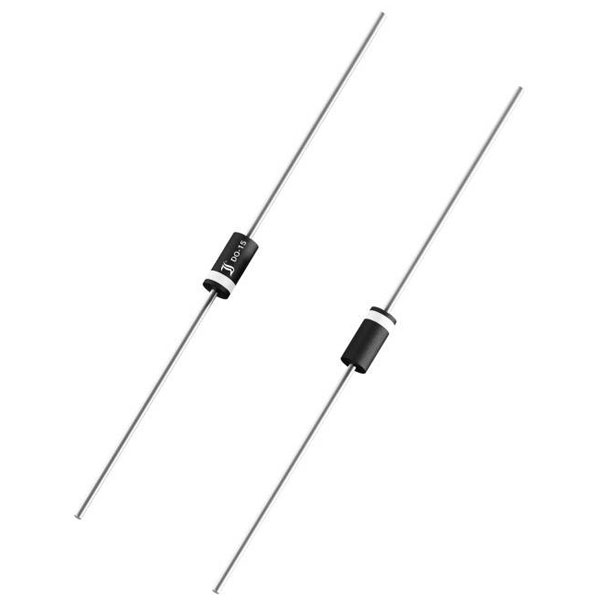

Diotec 1N5817 Schottky diode 20V DO-15 high-efficiency low-voltage drop

Diotec 1N5817 is a Schottky diode designed for high-efficiency performance with a low forward voltage drop, making it suitable for applications requiring a quick response and low power loss. Encased in the DO-15 package, this diode supports a reverse voltage up to 20 volts and provides reliable performance in high-frequency applications, such as switching power supplies, inverters, and polarity protection circuits. This diode's structure features a PN junction optimised for minimal reverse recovery time, permitting efficient operation at high frequencies. Commonly utilised as a blocking diode, the 1N5817 effectively reduces energy dissipation, thereby enhancing the overall efficiency of electronic systems. Its robust design and performance characteristics make it a staple component in a wide range of power management and rectification applications.

Type	Schottky diode
Content	1
Enclosure	DO 15
Forward current I(F)	3A
Forward Voltage U(F)	0.75V
Maximum Operating Temperature	150°C
Mounting Type	Through-hole mounting
Peak forward surge Current I(FSM)	40A
Product Type	Schottky diode
Reverse leakage Current I(r)	1000µA
Reverse Voltage U(R)	20V
