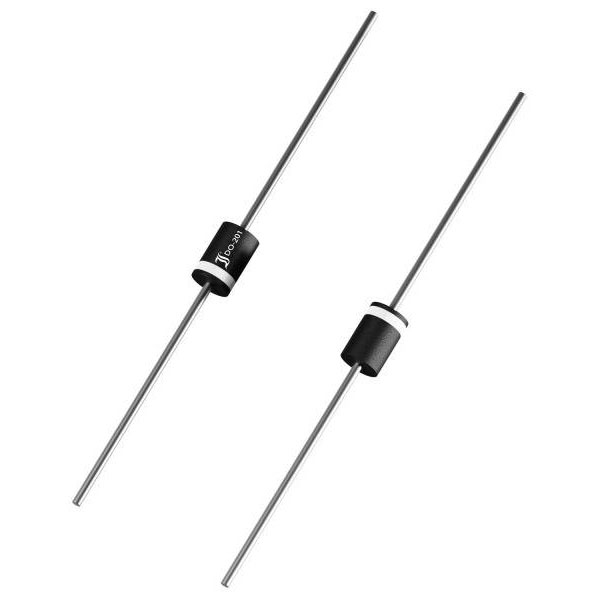

Diotec 1N5346B Zener Diodes 10W 9V-47V DO-201AE Silicon Leaded

Diotec 1N5346B Zener diodes are designed with a silicon leaded configuration in a DO-201AE package, providing reliable Zener voltage regulation across a range of 10W with voltages between 9V and 47V. The diode functions as a voltage stabilising component, employing a pn junction to maintain a consistent output voltage despite variations in the input voltage or load conditions, making it an essential component in systems requiring precise voltage constraints. These diodes are particularly applicable in power supply circuits, surge protectors, and waveform clipping circuits where stable voltage reference or limiting current overvoltage conditions are required. The 1N5346B is engineered to offer efficient and dependable performance, catering to demanding engineering applications.

Type	Zener diode
Enclosure	DO 201
Mounting Type	Through-hole mounting
Operating temperature (max.)	150°C
Power (max) P(TOT)	5W
Product Type	Zener diode
Reverse leakage Current I(r)	7.500µA
Reverse Voltage U(R)	7V
Z Voltage U(Z)	9.10V
