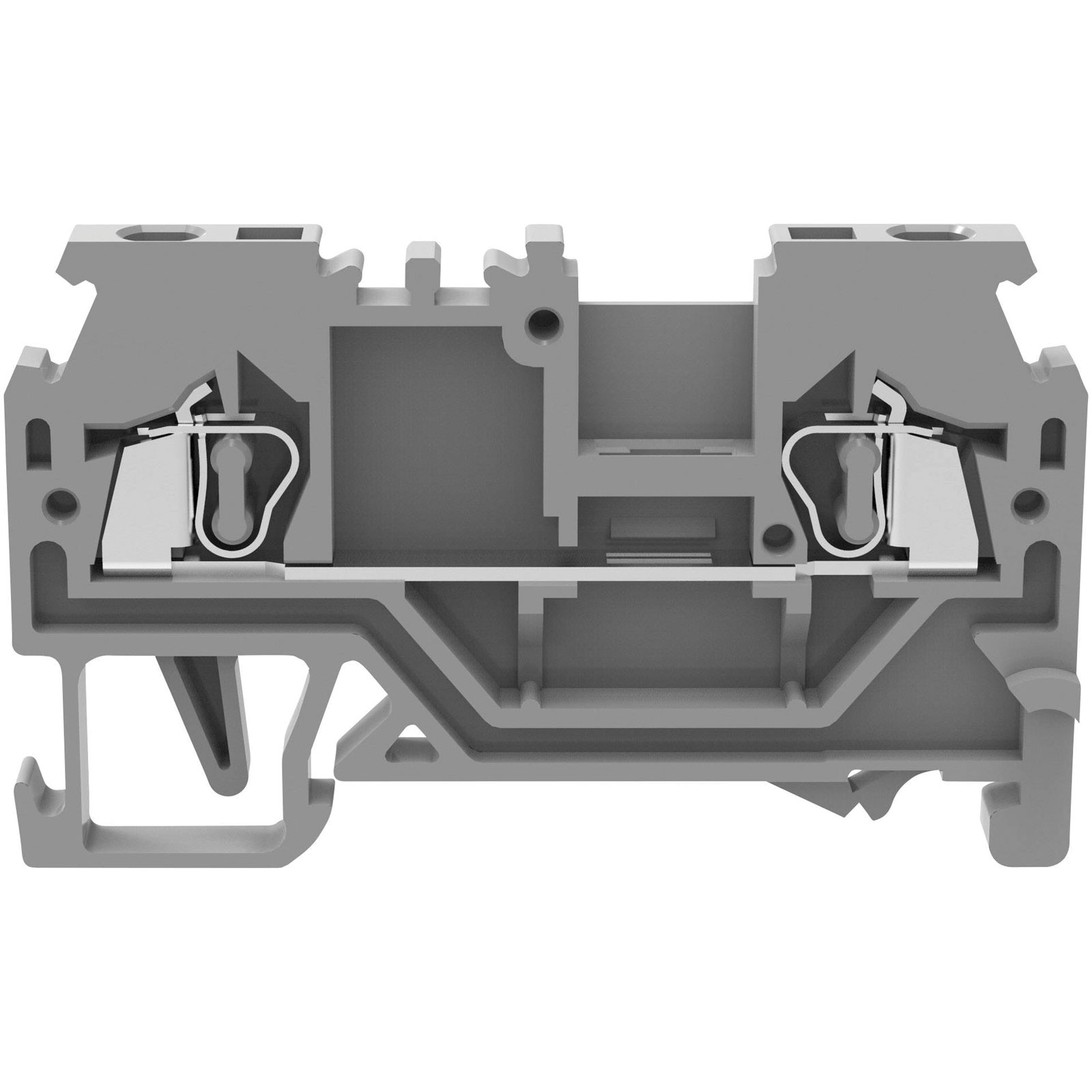

DEGSON WS16-01P-11-00A(H) Terminal Grey Spring-loaded 1pc Continuity

Image Representative of Range

DEGSON WS16-01P-11-00A(H) Terminal Grey Spring-loaded 1pc Continuity

Degson
Standard range
Order Code:

02-4523

Brand: Degson MPN: WS16-01P-11-00A(H)
Qty Unit Price (Ex VAT)
1+ £1.82
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
12 in stock, despatched in 4 working days

DEGSON manufactures the WS16-01P-11-00A(H) continuity spring-loaded terminal, a grey component. It is typically used in switchboard and serial terminals for ensuring reliable electrical connections. Its spring-loaded mechanism enhances continuity, providing secure and stable performance.
Type Continuity
Width 12mm
AWG (min.) 24
AWG max. 6
Connection Spring-loaded terminal
Cross section (flexible) (max.) 16mm²
Cross section (flexible) (min.) 0.2mm²
Cross section (inflexible) (max.) 16mm²
Cross section (inflexible) (min.) 0.2mm²
Dim (L x W x H) 94.5 x 12 x 45 mm
Factory colour Grey
Height 45mm
Length 94.5mm
Manufacturer part # WS16-01P-11-00A(H)
Min. stripping length 16mm
Misc Attribute WS16-01P-11-00A(H)
Nominal current - rounded value NaNA
Number of pins 1
Rated surge voltage 8kV
RoHS-compliant Yes
Stripping length (max.) 17mm
Weight 1g
