DEGSON PC4-HE-01P-13-00AH-1 Fuse Terminal 8.2mm Screws Black 1pc

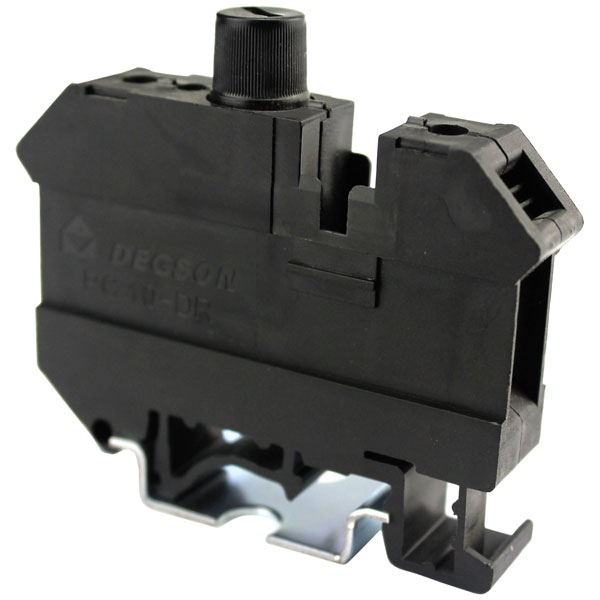

Image Representative of Range

DEGSON PC4-HE-01P-13-00AH-1 Fuse Terminal 8.2mm Screws Black 1pc

Degson
Order Code:

02-4512

Brand: Degson MPN: PC4-HE-01P-13-00AH-1 EAN-13: 2050003383318
Qty Unit Price (Ex VAT)
2+ £2.42
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
204 available to back orderBack-order availability date - 09/01/2026

The DEGSON PC4-HE-01P-13-00AH-1 is a fuse terminal distinguished by its 8.2 mm screw connectors and black design. Manufactured by DEGSON, it is suitable for use in switchboards and DIN-rail applications where continuity and reliability are essential. This component is ideal for integrating into electrical circuits requiring secure fuse connections.
Type Fuse terminal
No. of Ways 1
Current Rating 6.3A
Width 8.20mm
Wire Gauge (AWG) 12
AWG (min.) 24
Clamp width 8.2mm
Connection Screws
Contamination level 3
Cross section (flexible) (max.) 1.5mm²
Cross section (flexible) (min.) 0.2mm²
Cross section (inflexible) (max.) 1.5mm²
Cross section (inflexible) (min.) 0.2mm²
Dim (L x W x H) 72.50 x 8.20 x 56.10 mm
Factory colour Black
Height 56.10mm
Length 72.50mm
Min. stripping length 8mm
Misc Attribute PC4-HE-01P-13-00AH
Nominal Voltage 800
Number of Rows 1
Pins per row 1
Rated Surge Voltage 6kV
Stripping length (max.) 8mm
