DEGSON PC16-PE-01P-1Y-00AH-1 PG Terminal 12.2mm Screws Yellow/Green

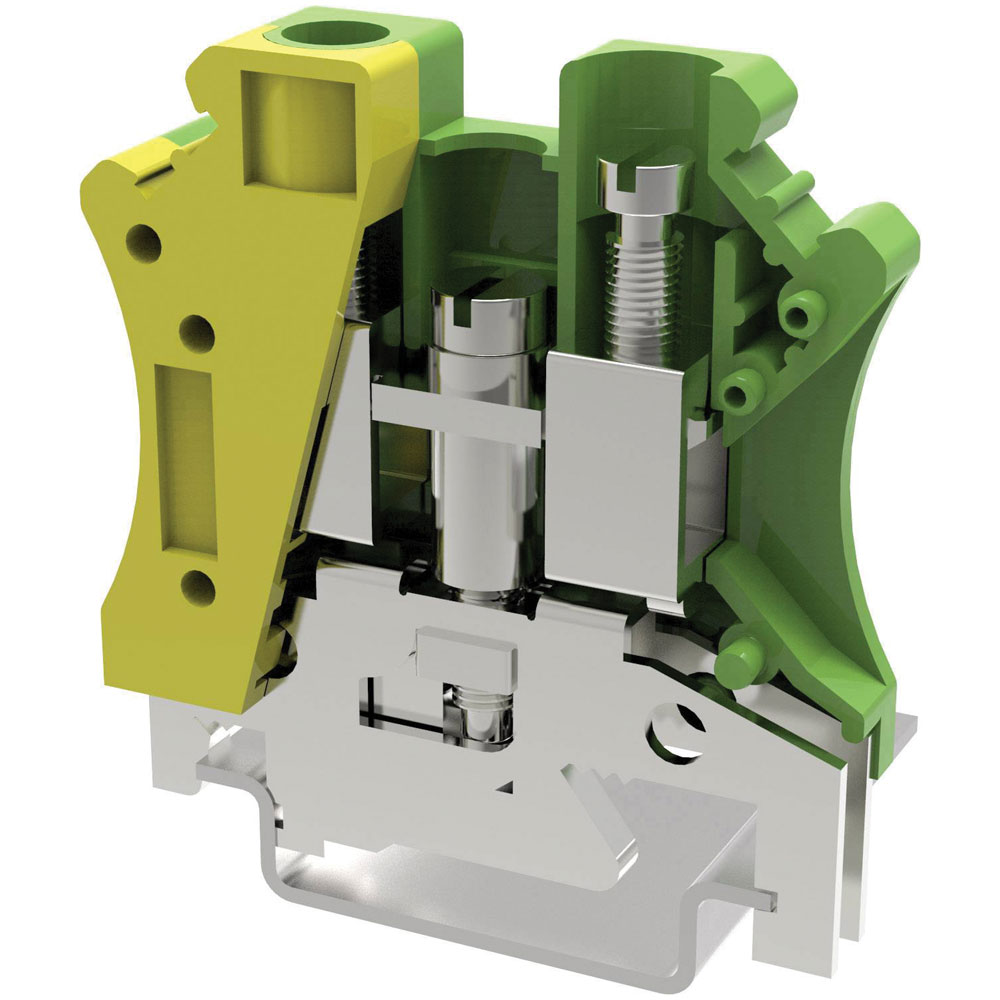

Image Representative of Range

DEGSON PC16-PE-01P-1Y-00AH-1 PG Terminal 12.2mm Screws Yellow/Green

Degson
Standard range
Order Code:

02-4505

Brand: Degson MPN: PC16-PE-01P-1Y-00AH-1
Qty Unit Price (Ex VAT)
1+ £2.92
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
42 in stock, despatched in 4 working days

The DEGSON PC16-PE-01P-1Y-00AH-1 PG terminal features a 12.2 mm screw connection and is available in yellow and green. This terminal block is suitable for DIN-rail mounting and provides reliable continuity for switchboard applications. Ideal for use in serial and switchboard terminals, it ensures secure electrical connections.
Type PG terminal
Width 12.20mm
AWG (min.) 12
AWG max. 4
Clamp width 12.2mm
Connection Screws
Contamination level 3
Cross section (flexible) (max.) 4mm²
Cross section (flexible) (min.) 1.5mm²
Cross section (inflexible) (max.) 6mm²
Cross section (inflexible) (min.) 1.5mm²
Dim (L x W x H) 42.50 x 12.20 x 52.80 mm
Height 52.80mm
Length 42.50mm
Manufacturer part # PC16-PE-01P-1Y-00AH-1
Min. stripping length 11mm
Misc Attribute PC16-PE-01P-1Y-00AH
No. of rows 1
Number of pins 1
Pins per row 1
Rated surge voltage 8kV
RoHS-compliant Yes
Stripping length (max.) 11mm
Weight 37.00g
