DEGSON DS1.5-TW-PE-01P-1C-00A(H) PG Terminal Push-in Connector Green/Yellow

DEGSON DS1.5-TW-PE-01P-1C-00A(H) PG Terminal Push-in Connector Green/Yellow

Degson
Order Code:

02-4445

Brand: Degson MPN: DS1.5-TW-PE-01P-1C-00A(H) EAN-13: 2050006373217

Discontinued

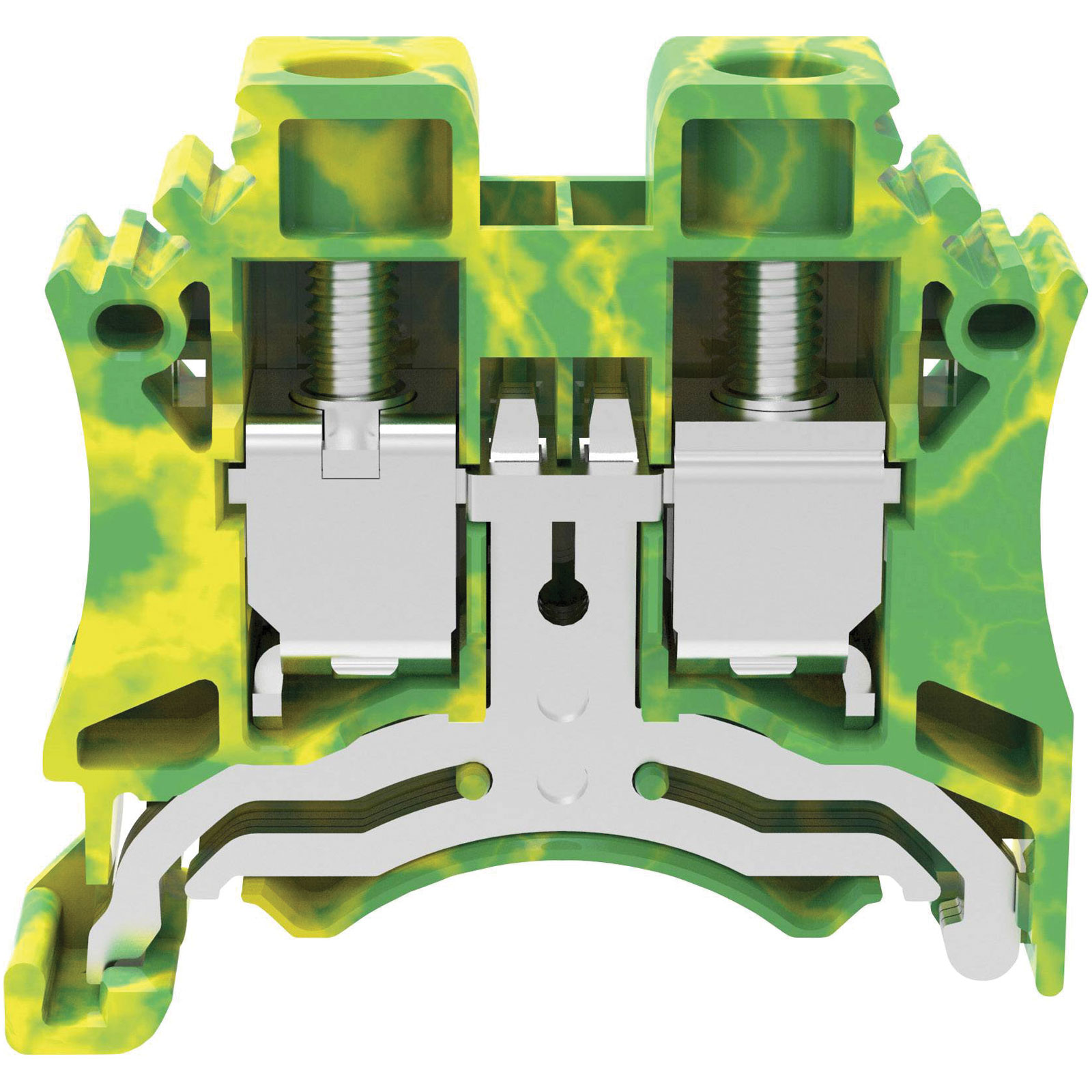

The DEGSON DS1.5-TW-PE-01P-1C-00A(H) PG terminal is a green and yellow push-in connector designed for switchboard and serial terminal applications. This component ensures continuity and reliability in electrical connections. It is ideal for maintaining secure connections in control panels and electrical installations.
Type PG terminal
Width 3.5mm
Wire Gauge (AWG) 14
AWG (min.) 26
Connection Push-in connector
Cross section (flexible) (max.) 1mm²
Cross section (flexible) (min.) 0.2mm²
Cross section (inflexible) (max.) 1.5mm²
Cross section (inflexible) (min.) 0.2mm²
Dim (L x W x H) 54 x 3.5 x 32 mm
Height 32mm
Length 54mm
Min. stripping length 8mm
Number of Rows 1
Rated Surge Voltage 6kV
Stripping length (max.) 8mm
