DEGSON 15EDGVC-3.5-06P-14-00AH PCB Socket Housing 6 Pins 3.5mm Spacing

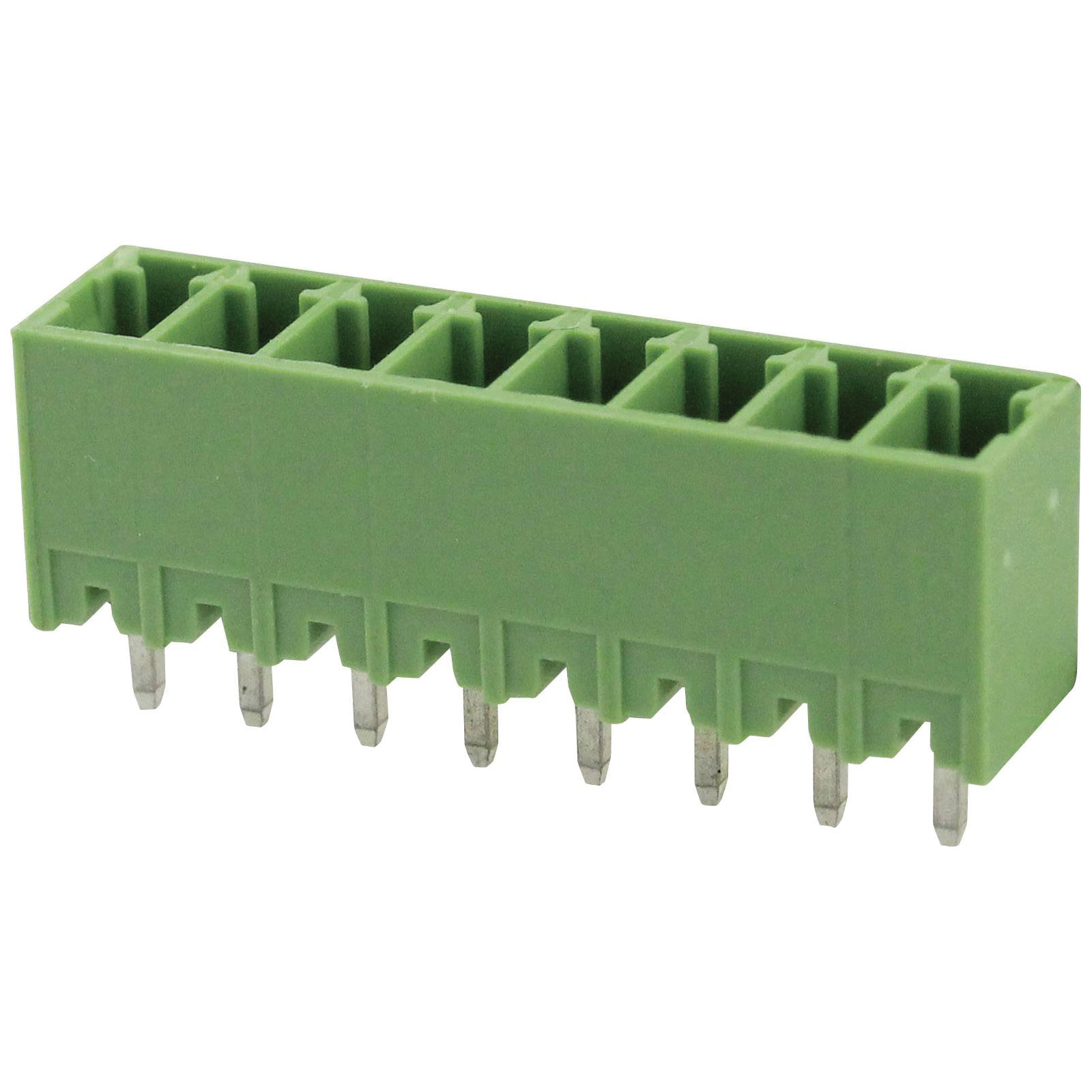

Image Representative of Range

DEGSON 15EDGVC-3.5-06P-14-00AH PCB Socket Housing 6 Pins 3.5mm Spacing

Degson
Standard range
Order Code:

02-4235

Brand: Degson MPN: 15EDGVC-3.5-06P-14-00AH
Qty Unit Price (Ex VAT)
1+ £0.520
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
999 in stock, despatched in 4 working days

The DEGSON socket housing PCB, model 15EDGVC-3.5-06P-14-00AH, features a pluggable multi-pin connector with six pins and a contact spacing of 3.5 mm. This basic housing is ideal for use with Combicon plug-in terminals and is commonly used in electronic and industrial applications where secure and reliable connections are required. DEGSON provides a robust design suited for efficient signal transmission in various PCB configurations.
Board contact surface Tin plated
Case material PA 66 UL94V-0
Compatible with (details) 15EDGK-3.5-06P-14-00AH
Connection Print
Connector contact surface Tin plated
Connector orientation Perpendicular (to the PCB)
Connector system board-to-board
Connector type Socket, vertical vertical
Contact material Brass
CS 3.5mm
Dim (L x W x H) 7.00 x 21.80 x 12.60 mm
Factory colour Green
Height 12.60mm
Length 7.00mm
Manufacturer part # 15EDGVC-3.5-06P-14-00AH
Misc Attribute 15EDGVC-3.5-06P-14-00AH
No. of rows 1
Nominal current 8A
Nominal current - rounded value 8A
Nominal voltage 300V
Pins per row 6
RoHS-compliant Yes
Total number of pins 6
Type Socket housing PCB
Width 21.80mm
