DEGSON 15EDGRC-2.5-09P-14-00AH-1 Socket Housing PCB 9 Pins 2.5mm Spacing

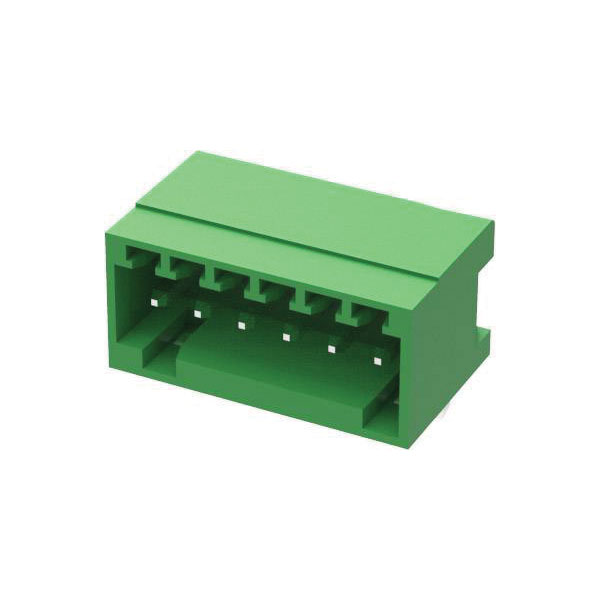

Image Representative of Range

DEGSON 15EDGRC-2.5-09P-14-00AH-1 Socket Housing PCB 9 Pins 2.5mm Spacing

Degson
Standard range
Order Code:

02-4208

Brand: Degson MPN: 15EDGRC-2.5-09P-14-00AH-1
Qty Unit Price (Ex VAT)
1+ £0.649
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

The DEGSON 15EDGRC-2.5-09P-14-00AH-1 socket housing PCB features nine pins with a contact spacing of 2.50 mm. Manufactured by DEGSON, this connector is designed for secure and reliable connections on printed circuit boards. It is commonly used in electronic applications for housing and organizing multiple electrical connections efficiently.
Board contact surface Tin plated
Case material PA 66 UL94V-0
Connection Print
Connector contact surface Tin plated
Connector orientation Parallel (to the PCB)
Connector system wire-to-board
Connector type Power strip, right angle
Contact material Copper alloy
CS 2.50mm
Dim (L x W x H) 10.10 x 24.20 x 8.10 mm
Factory colour Green
Height 8.10mm
Industrial packaging No
Insulation material PA 66 UL94V-0
Length 10.10mm
Manufacturer part # 15EDGRC-2.5-09P-14-00AH-1
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute 15EDGRC-2.5-09P-14-00AH-1
No. of rows 1
Nominal current 1.50A
Nominal current - rounded value 1.5A
Nominal voltage 150V
Pin Ø 0.80mm
Pin shape Square
Pins per row 9
RoHS-compliant Yes
Series 15EDGRC
Total number of pins 9
Type Socket housing PCB
Width 24.20mm
