DEGSON 15EDGKN-3.5-12P-14-00AH Cable Pin Housing 12 Pins 3.5mm Spacing

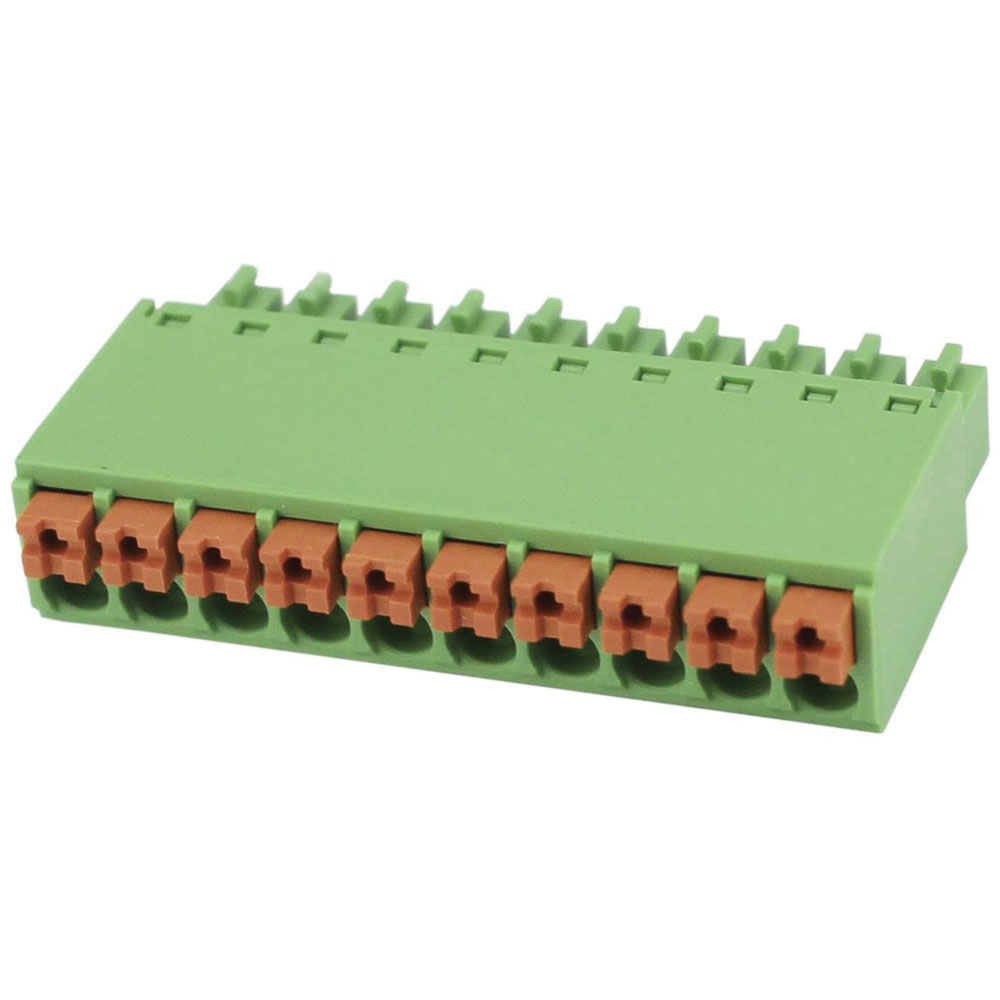

Image Representative of Range

DEGSON 15EDGKN-3.5-12P-14-00AH Cable Pin Housing 12 Pins 3.5mm Spacing

Degson
Standard range
Order Code:

02-4194

Brand: Degson MPN: 15EDGKN-3.5-12P-14-00AH
Qty Unit Price (Ex VAT)
1+ £3.70
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
324 in stock, despatched in 4 working days

The DEGSON pin housing cable, model 15EDGKN-3.5-12P-14-00AH, features 12 pins with a contact spacing of 3.5 mm and uses spring-loaded terminals. This product is typically used for secure connections in electronic and PCB applications. DEGSON offers this as part of their range of pluggable, spring-type terminals suitable for industrial and commercial settings.
No. of rows 1
AWG (min.) 28
AWG max. 16
Case material PA 66 UL94V-0
Connector contact surface Tin plated
Connector system wire-to-board
Connector type Plug, straight
Contact material Phosphor bronze tin plated
CS 3.5mm
Dim (L x W x H) 23.00 x 42.80 x 7.80 mm
Factory colour Green
Height 7.80mm
Length 23.00mm
Manufacturer part # 15EDGKN-3.5-12P-14-00AH
max. cross section 2.5mm²
Max. temperature +105°C
Min. cross section 1mm²
Min. temperature -40°C
Misc Attribute 15EDGKN-3.5-12P-14-00AH
Nominal current 8A
Nominal current - rounded value 8A
Nominal voltage 300V
Pins per row 12
RoHS-compliant Yes
Stripping length (max.) 10.00mm
Total number of pins 12
Type Pin housing cable
Width 42.80mm
