DEGSON 15EDGKA-3.81-06P-14-100AH-1 Pin Housing Cable 6 Pins 3.81mm

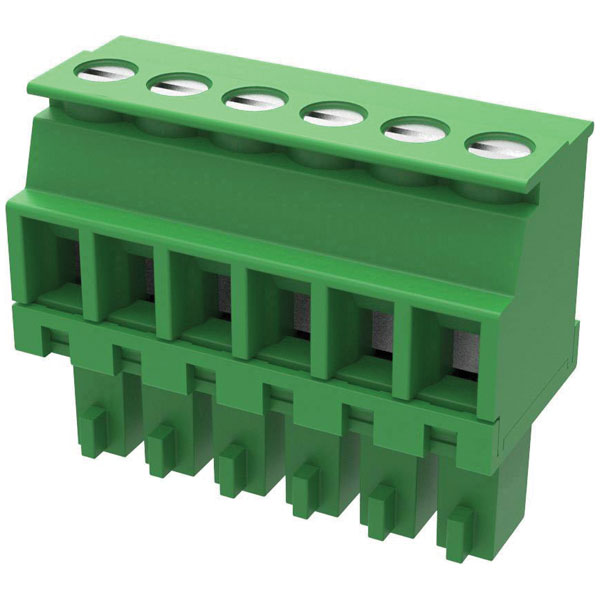

Image Representative of Range

DEGSON 15EDGKA-3.81-06P-14-100AH-1 Pin Housing Cable 6 Pins 3.81mm

Degson
Standard range
Order Code:

02-4148

Brand: Degson MPN: 15EDGKA-3.81-06P-14-100AH-1
Qty Unit Price (Ex VAT)
1+ £1.85
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
77 in stock, despatched in 4 working days

The DEGSON 15EDGKA-3.81-06P-14-100AH-1 pin housing cable features 6 pins with a contact spacing of 3.81 mm. This component is typically utilized in applications requiring reliable wire-to-wire connections. DEGSON products are well-regarded for use in controls and industrial automation systems.
No. of rows 1
AWG (min.) 28
AWG max. 16
Case material PA 66 UL94V-0
Connector contact surface Tin plated
Connector system wire-to-board
Connector type Plug, straight
Contact material Phosphor bronze
CS 3.81mm
Dim (L x W x H) 19.10 x 12.80 x 10.50 mm
Factory colour Green
Height 10.50mm
Industrial packaging No
Insulation material PA 66 UL94V-0
Length 19.10mm
Manufacturer part # 15EDGKA-3.81-06P-14-100AH-1
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute 15EDGKA-3.81-06P-14-100AH-1
Nominal current 8A
Nominal current - rounded value 8A
Nominal voltage 300V
Pins per row 6
RoHS-compliant Yes
Series 15EDGKA
Stripping length (max.) 7mm
Thread Size M2
Total number of pins 6
Type Pin housing cable
Width 12.80mm
