DEGSON 15EDGK-3.81-06P-14-00AH Pin Housing Cable 6 Pins 3.81mm Spacing

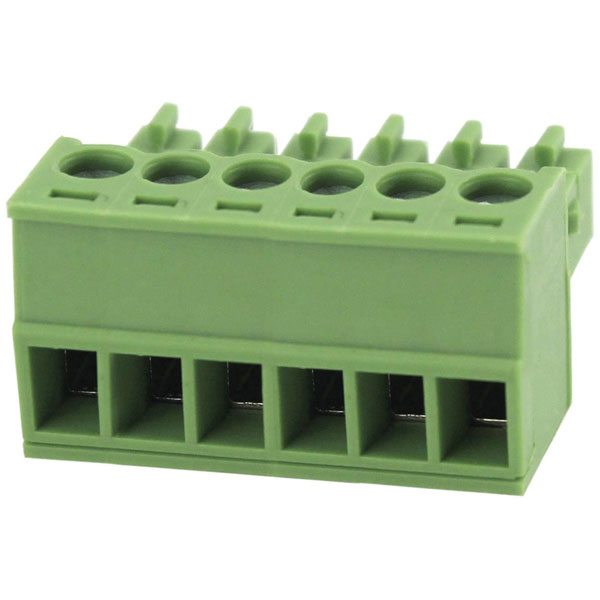

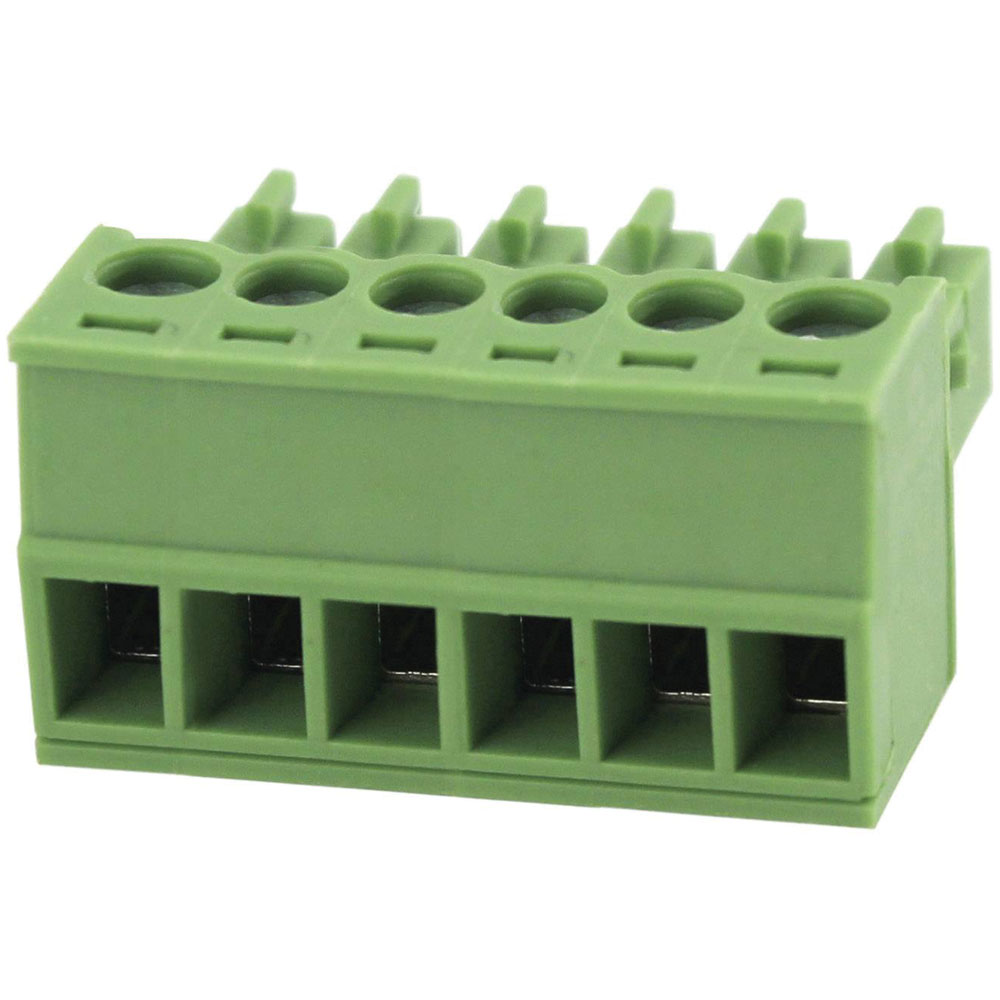

Image Representative of Range

DEGSON 15EDGK-3.81-06P-14-00AH Pin Housing Cable 6 Pins 3.81mm Spacing

Degson
Standard range
Order Code:

02-4132

Brand: Degson MPN: 15EDGK-3.81-06P-14-00AH
Qty Unit Price (Ex VAT)
1+ £1.33
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
626 in stock, despatched in 4 working days

DEGSON's pin housing cable model 15EDGK-3.81-06P-14-00AH features six pins with a contact spacing of 3.81 mm. This pluggable screw terminal is ideal for use in elevator systems and other applications requiring reliable pcb terminal connections. Its compact design and lift system compatibility make it suitable for versatile industrial uses.
No. of rows 1
AWG (min.) 28
AWG max. 16
Case material PA 66 UL94V-0
Compatible with (details) 28 - 16
Connection Screw terminal
Connector contact surface Tin plated
Connector system wire-to-board
Connector type Plug, straight
Contact material Phosphor bronze
CS 3.81mm
Dim (L x W x H) 15.60 x 23.65 x 11.10 mm
Factory colour Green
Height 11.10mm
Length 15.60mm
Manufacturer part # 15EDGK-3.81-06P-14-00AH
max. cross section 1.5mm²
Min. cross section 1mm²
Misc Attribute 15EDGK-3.81-06P-14-00AH
Nominal current 8A
Nominal current - rounded value 8A
Nominal voltage 300V
Pins per row 6
RoHS-compliant Yes
Stripping length (max.) 7.00mm
Total number of pins 6
Type Pin housing cable
Width 23.65mm
