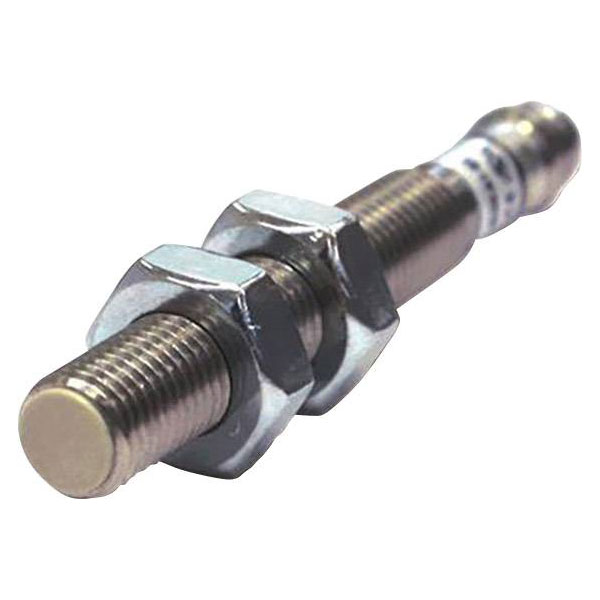

Datalogic 95B066880 Inductive Proximity Sensor M8 Shielded PNP Brass

Datalogic M8 shielded PNP inductive proximity sensor IS-08-G2-S1, known for its precision in inductive proximity detection. This sensor excels in detecting metallic objects without contact, making it ideal for automation and industrial environments. Common applications include machinery safety, object detection, and position sensing in assembly lines.

Type	Inductive proximity sensor
(Ø)	8mm
Connector	M8 (3-pin)
Contact Type	1 breaker
Dim	(Ø x L) 8 mm x 49.9 mm
Enclosure material	Brass
Installation type	shielded
IP Rating	IP67
Length	49.9mm
Material properties	nickel plated
Max. operating voltage	30V DC
Maximum Temperature	+60°C
Min. operating voltage	10V DC
Min. temperature	-25°C
Misc Attribute	IS-08-G2-S1
Operating Voltage	10 - 30 V DC
Output Type	PNP
Size	M8
Switching distance (max.)	2mm
Switching Frequency	500Hz
