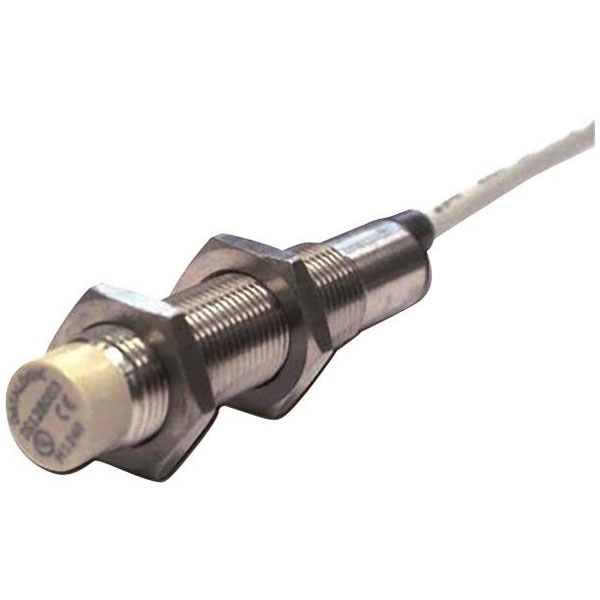

Datalogic 95B061651 IS-12-C1-S2 Inductive Sensor M12 PNP Brass

Datalogic IS-12-C1-S2 inductive proximity sensor, featuring a non-shielded PNP configuration. This sensor is particularly effective for proximity detection applications, utilising inductive technology to detect metal objects without physical contact. It is commonly employed in automation and industrial settings to ensure equipment safety and precision.

Type	Inductive proximity sensor
(Ø)	12mm
Connector	M12 (3-pin)
Contact Type	1 maker
Dim	(Ø x L) 12 mm x 72.4 mm
Enclosure material	Brass
Installation type	non-shielded
IP Rating	IP67
Length	72.4mm
Material properties	nickel plated
Max. operating voltage	30V DC
Maximum Temperature	+70°C
Min. operating voltage	10V DC
Min. temperature	-25°C
Misc Attribute	IS-12-C1-S2
Operating Voltage	10 - 30 V DC
Output Type	PNP
Size	M12
Switching distance (max.)	4mm
Switching Frequency	1000Hz
