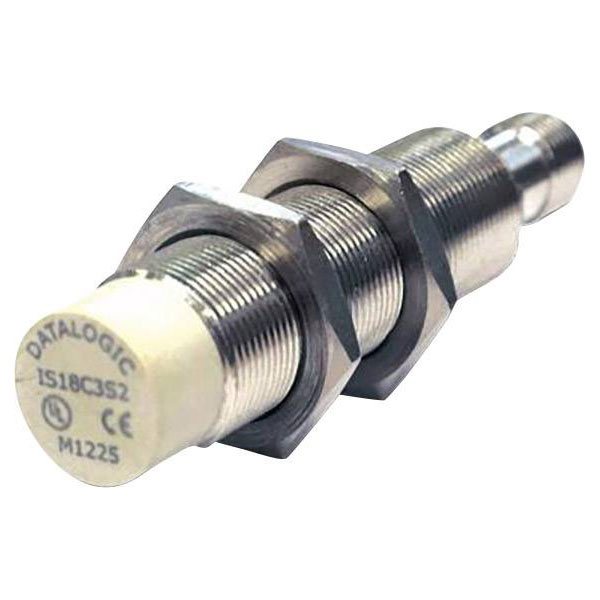

Datalogic 95B061351 Basic Inductive Proximity Sensor M18 Shielded PNP

Datalogic
Standard range
Order Code:

08-8730

Brand: Datalogic MPN: 95B061351 EAN-13: 2050004555561
Qty Unit Price (Ex VAT)
1+ £26.07
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
14 in stock, despatched in 4 working days

The Datalogic inductive proximity sensor IS-18-A1-S2 is a shielded PNP device designed for proximity detection. Key attributes include its M18 size and suitability for detecting metallic objects without physical contact. It is typically used in automation, machinery, and assembly line applications.
Type Inductive proximity sensor
(Ø) 18mm
Connector M12 (3-pin)
Contact type 1 maker
Dim (Ø x L) 18 mm x 73.4 mm
Enclosure material Brass
Installation type shielded
IP rating IP67
Length 73.4mm
Material properties nickel plated
Max. operating voltage 30V DC
Max. temperature +60°C
Min. operating voltage 10V DC
Min. temperature -25°C
Misc Attribute IS-18-A1-S2
Operating voltage 10 - 30 V DC
Outputs PNP
Size M18
Switching distance (max.) 5mm
Switching Frequency 1000Hz
