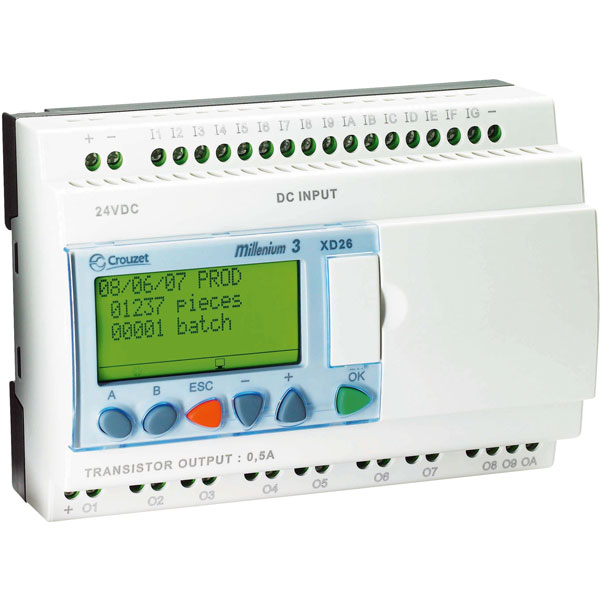

Crouzet 88970162 Millenium 3 XD26 S Expandable Logic Controller

This Crouzet Millenium 3 XD26 S Expandable logic controller will give you enhanced performance. More memory, greater user comfort and increased modularity, the Expandable Millenium 3 offers all the advantages of the latest generation of logic controllers. It has a number of additional features, including a large backlit LCD screen, program password protection, a 10-year data backup function (even after a power failure), a choice of two programming languages (Ladder and Function Block/Grafcet SFC), as well as enhanced software performance with the addition of new functions and macro editing capability.

The logic controller can be used in applications such as heating/air conditioning, access control, heat pumps, water and air treatment, waste treatment, lifting and handling, medical equipment, pump management and HVAC control.

The enhanced logic controller is supplied with a display and rated at 24V DC.

• High-performance expandable solution with display
• Extended memory: 120 lines in LADDER language and up to 350 'typical' blocks in FBD language
• LCD with 4 lines of 18 characters and configurable backlighting
• Selective parameter setting : You can choose the parameters that can be adjusted on the front panel
• Analogue inputs 0-10V DC or 0-20 mA/Pt 100 with converters
• Open to XN network communication extensions and digital I/O or analogue extensions
• No. of analogue inputs: 6
• No. of analogue outputs: 4
• No. of digital inputs: 16
• No. of inputs (max.): 10
• No. of transistor outputs (max.): 10
• SPS component: SPS controller
• Dimensions, 90(H) x 59.5(L) x 124.6(W)mm
• Operating voltage: 24V DC
• Type (manufacturer type): Millenium 3 XD10 S
• Manufacturer part No.: 88970162
