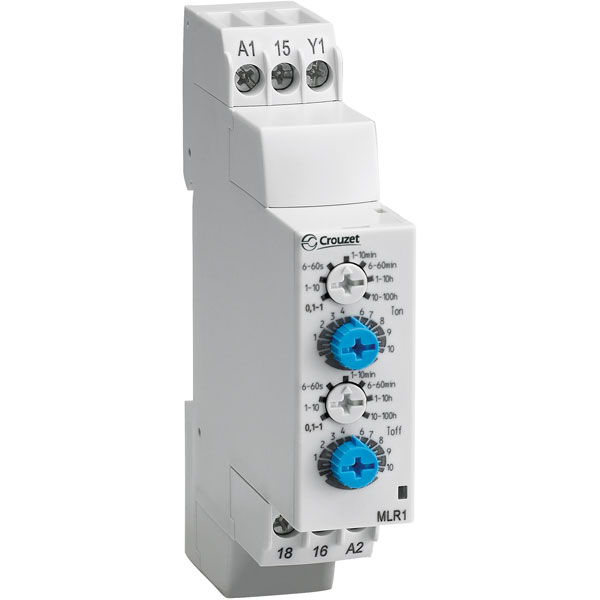

Crouzet 88827155 Time Delay Relay IP50 MLR1

This MLR1 time delay relay from Crouzet is a superbly designed multifunction timer fitted with a screw terminal. There is also an option of connecting an external power supply to the control input, while other features include the 3-wire PNP sensor control option and LED status indicator (relay version).

Functions of the timer include: 2 delays/start in active position, 2 delays/start in rest position and cyclic function.

• 90 x 69 x 17.5mm (H x L x W)
• Mounting: For DIN rail
• Protection type: IP50 (front)
• Screw terminals
• Accuracy: 0.5%
• Timing range: 0.1s to 100h
• Supply voltage: 24V DC, 24V AC to 240V AC
• Operating temperature range: -20°C to +60°C
• Certifications: CE, UL cUL, CSA, GL
• Manufacturer's part 88827155
